Computers and Control Systems: Locations




















Connector Locations: Engine Compartment

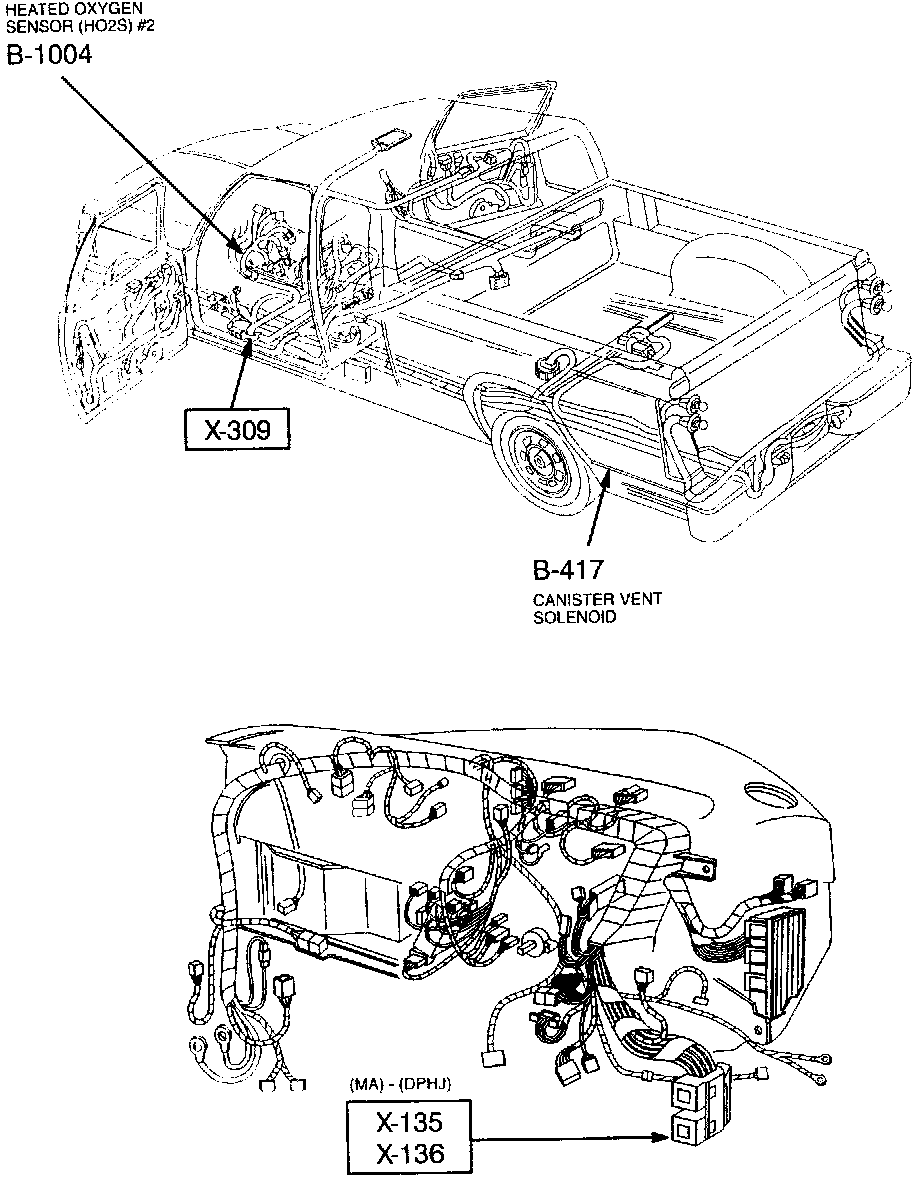

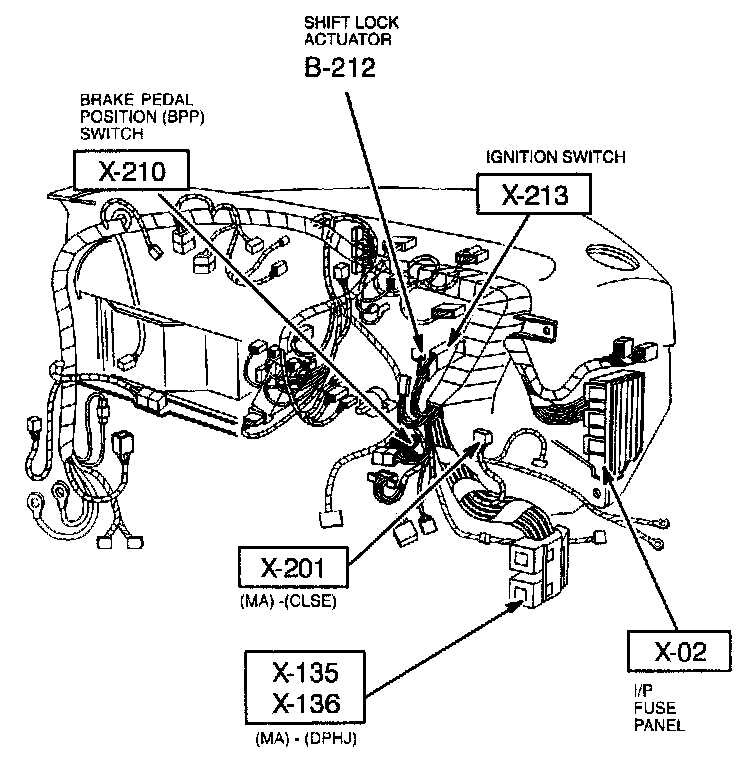

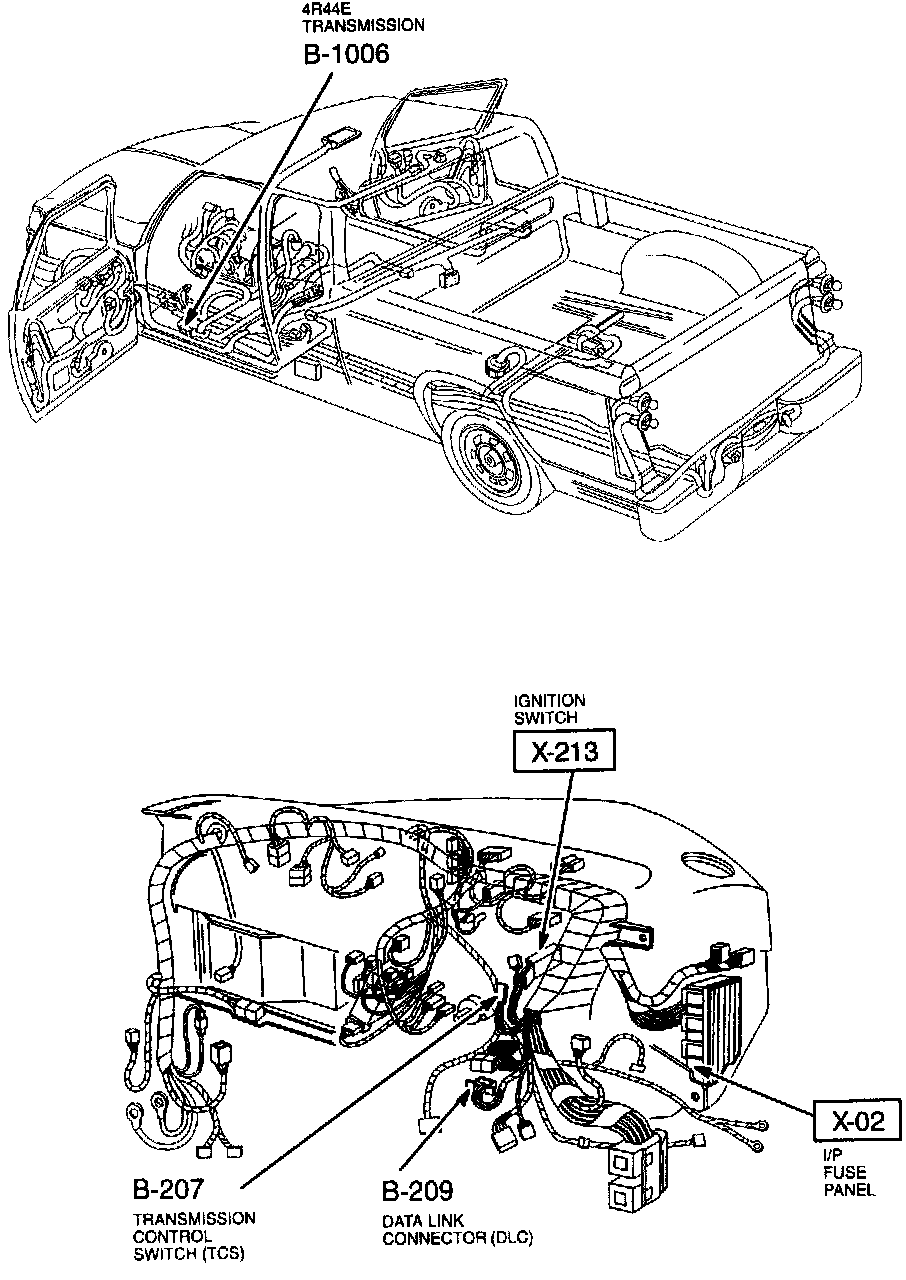

Connector Locations: Overall Vehicle and Dashboard
