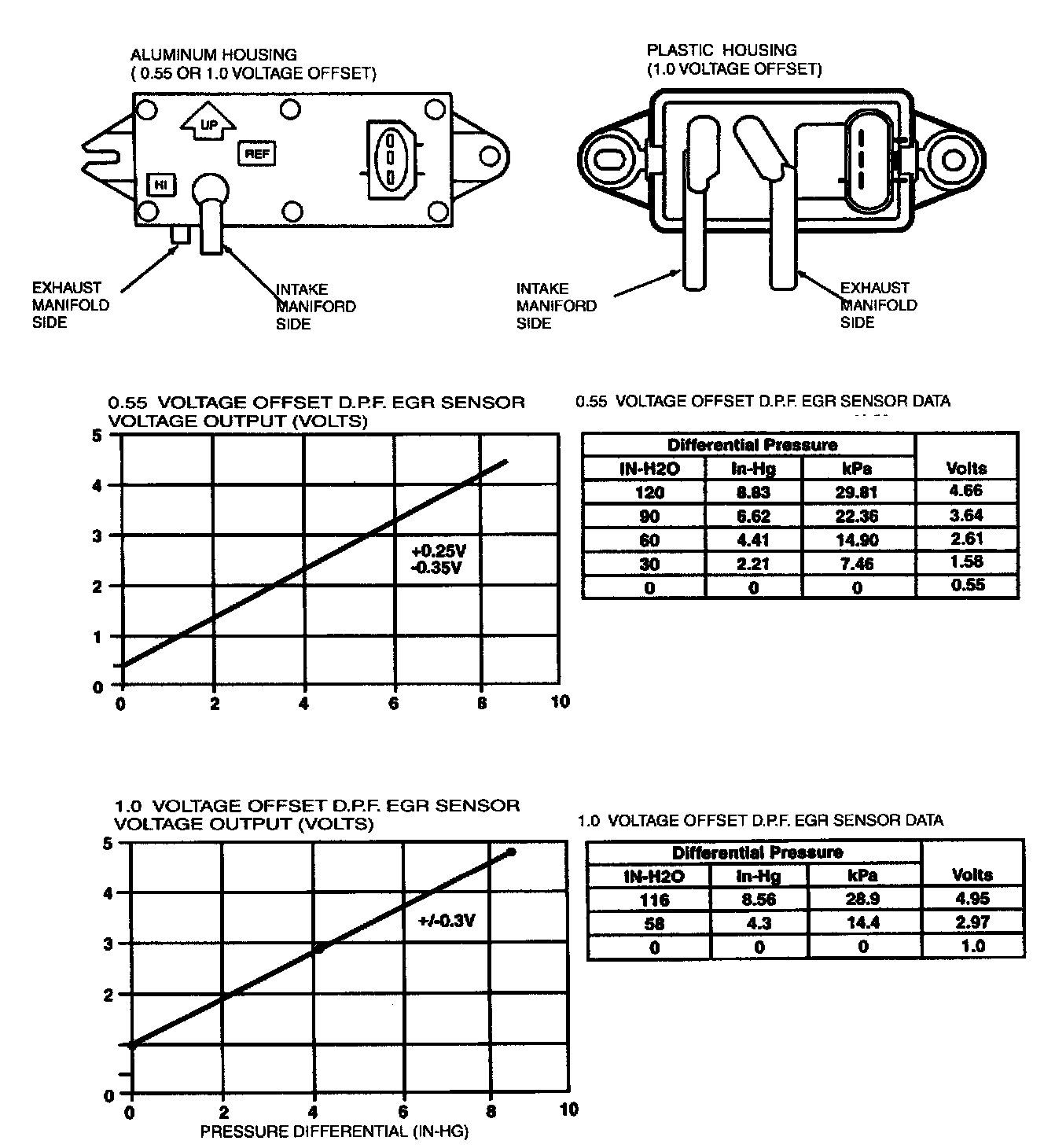

Pressure Feedback Exhaust Sensor: Description and Operation
-
Measures the actual pressure drop across the metering orifice and relays a proportional voltage signal (
0 - 5 volts) to the PCM. The PCM uses this feedback signal to correct for any errors in achieving the desired EGR flow.
