1: No Module/Network Communication-SCP Link

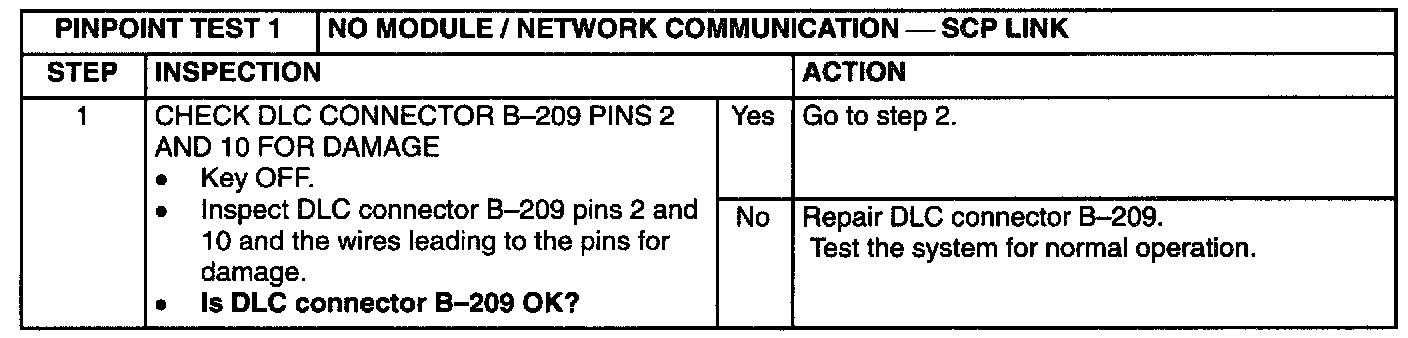

Step 1:

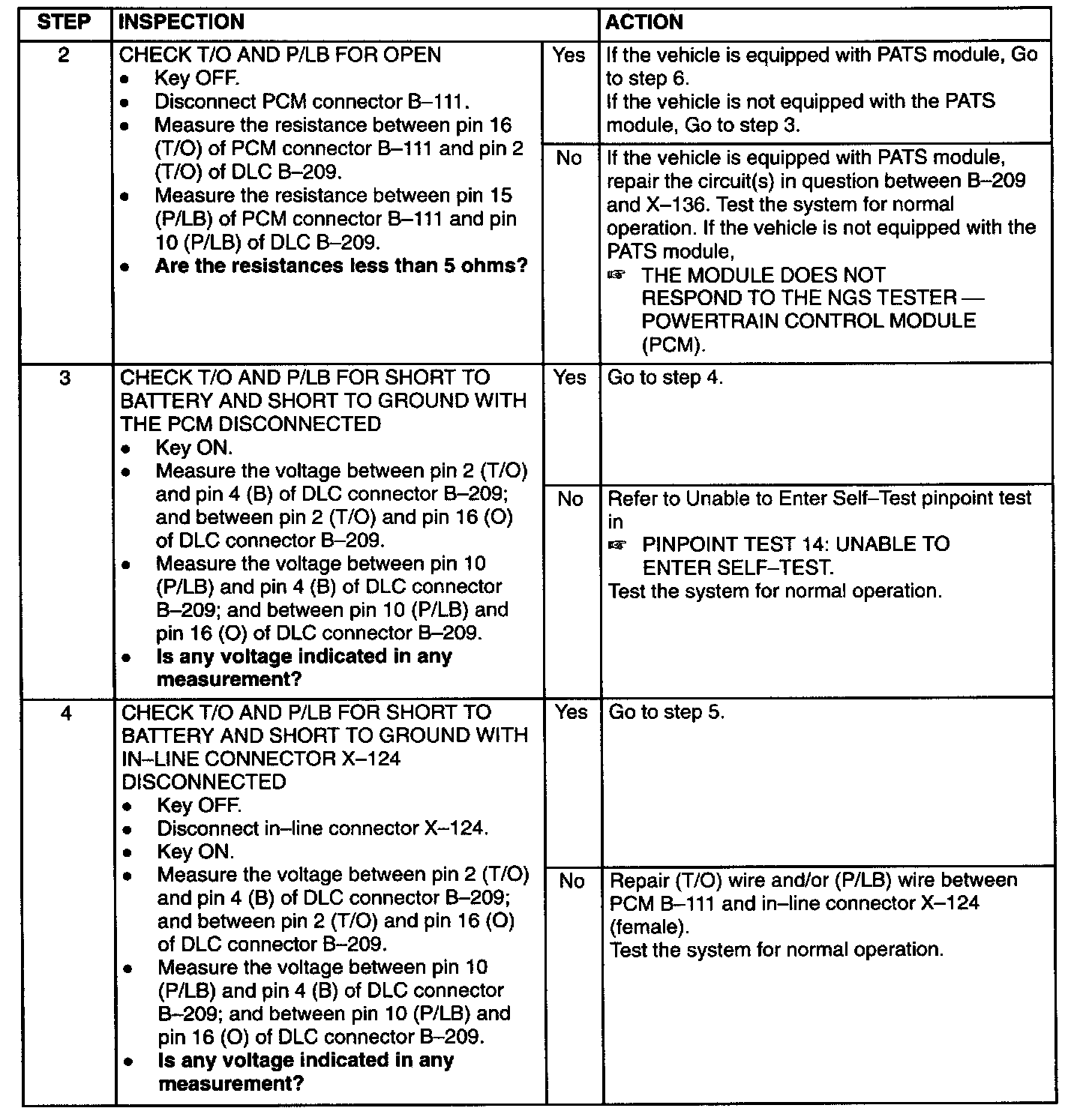

Steps 2 - 4:

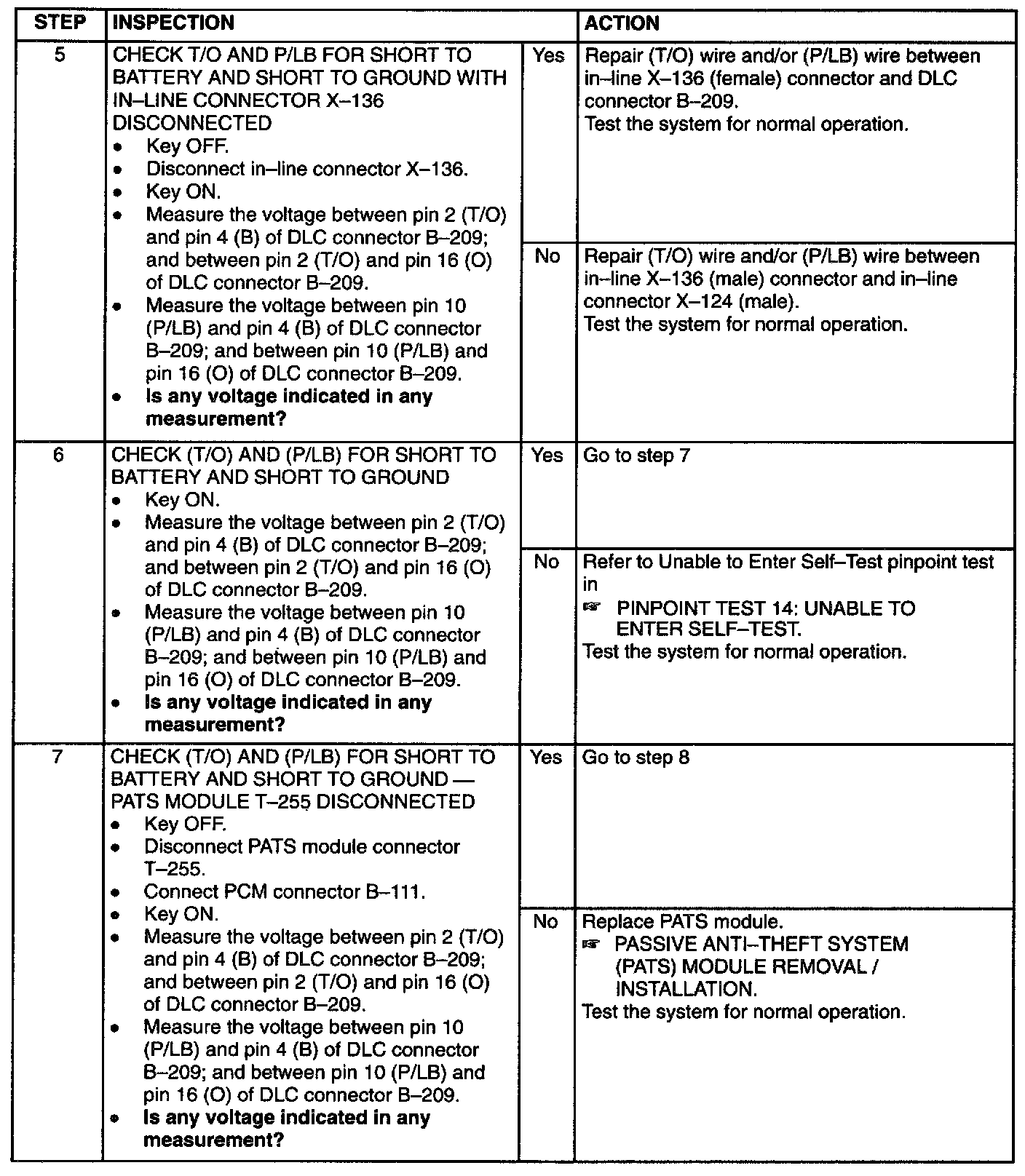

Steps 5 - 7:

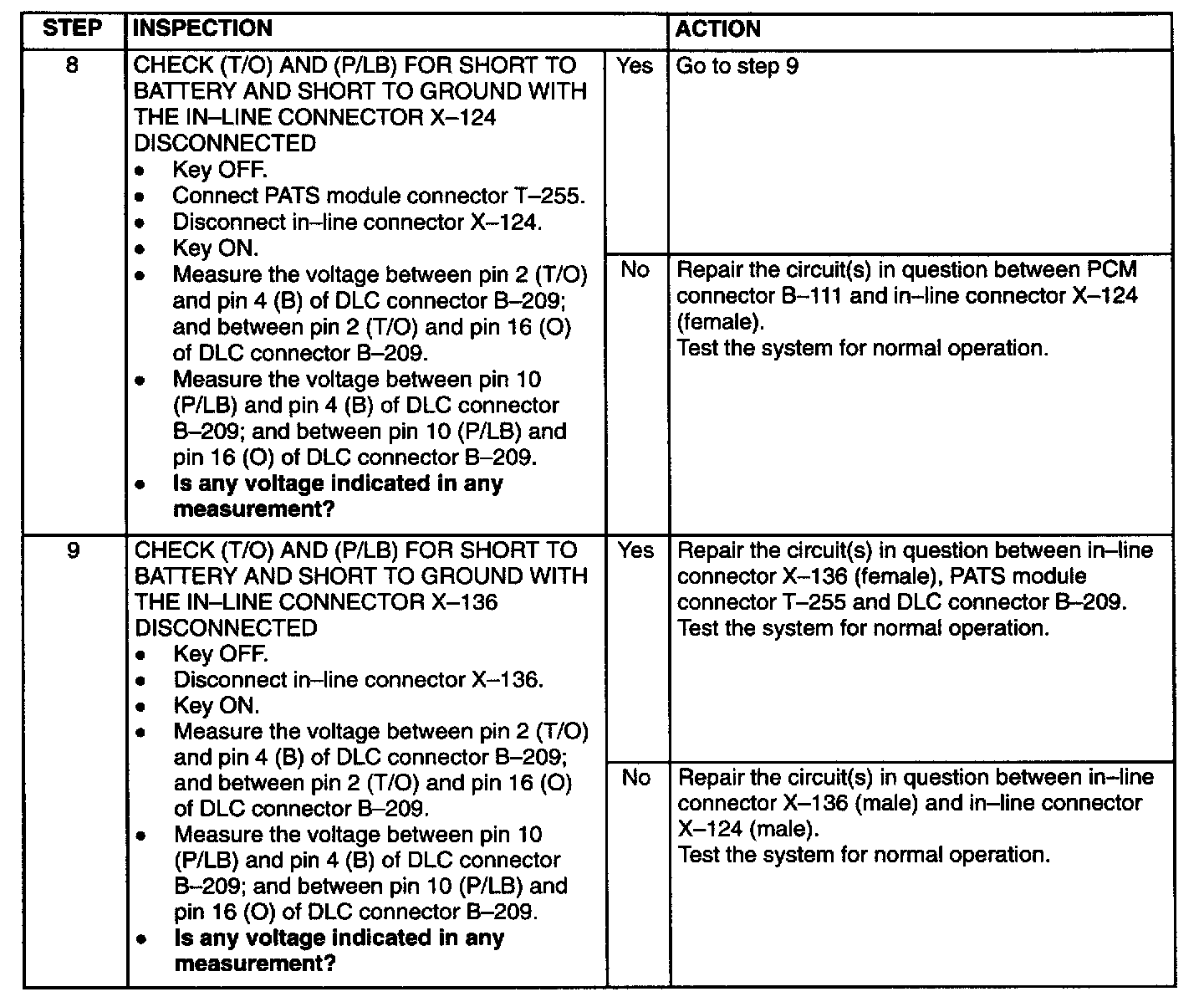

Steps 8 - 9:

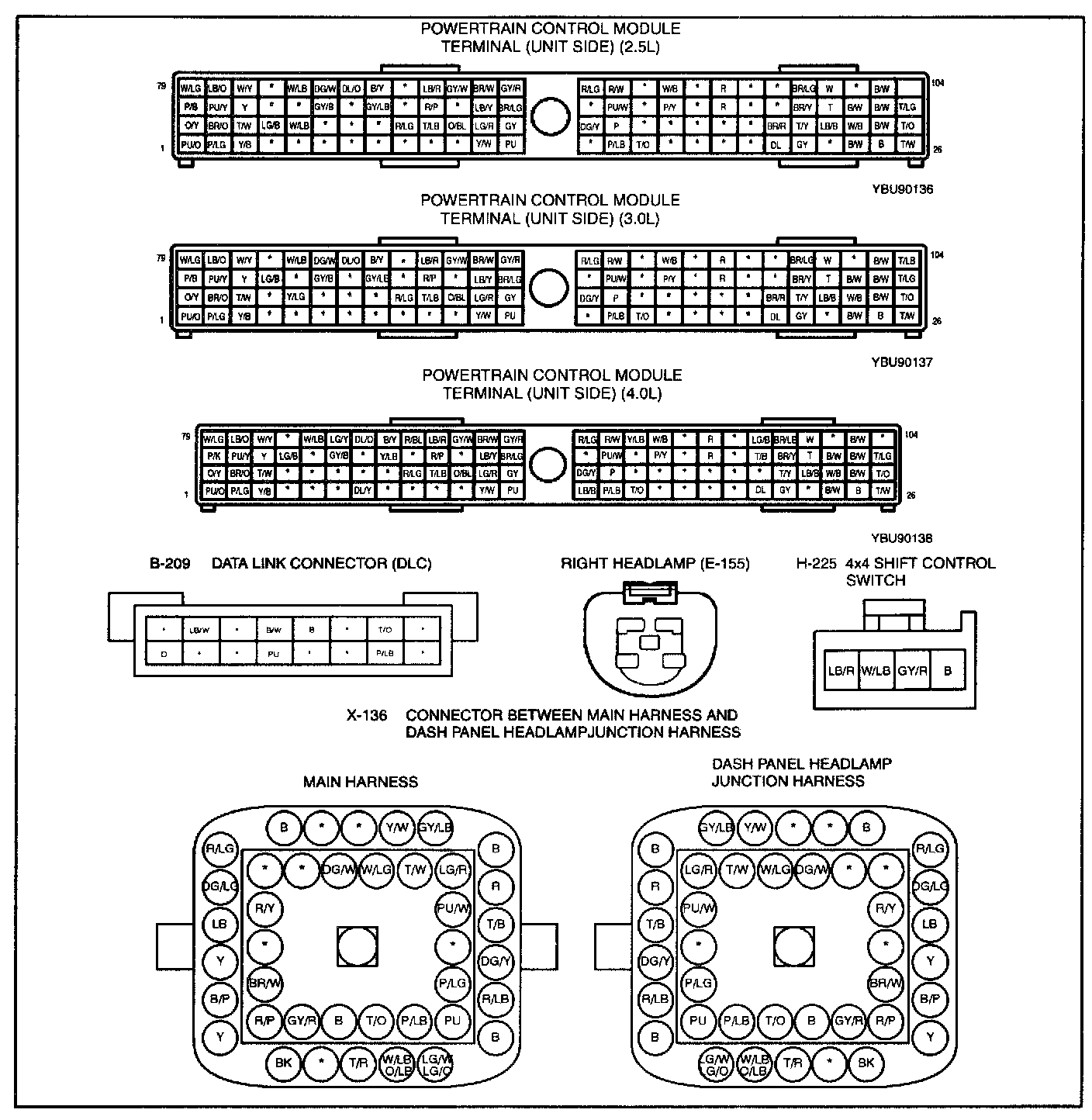

Connector View/Diagram:
