Mode 6 Data

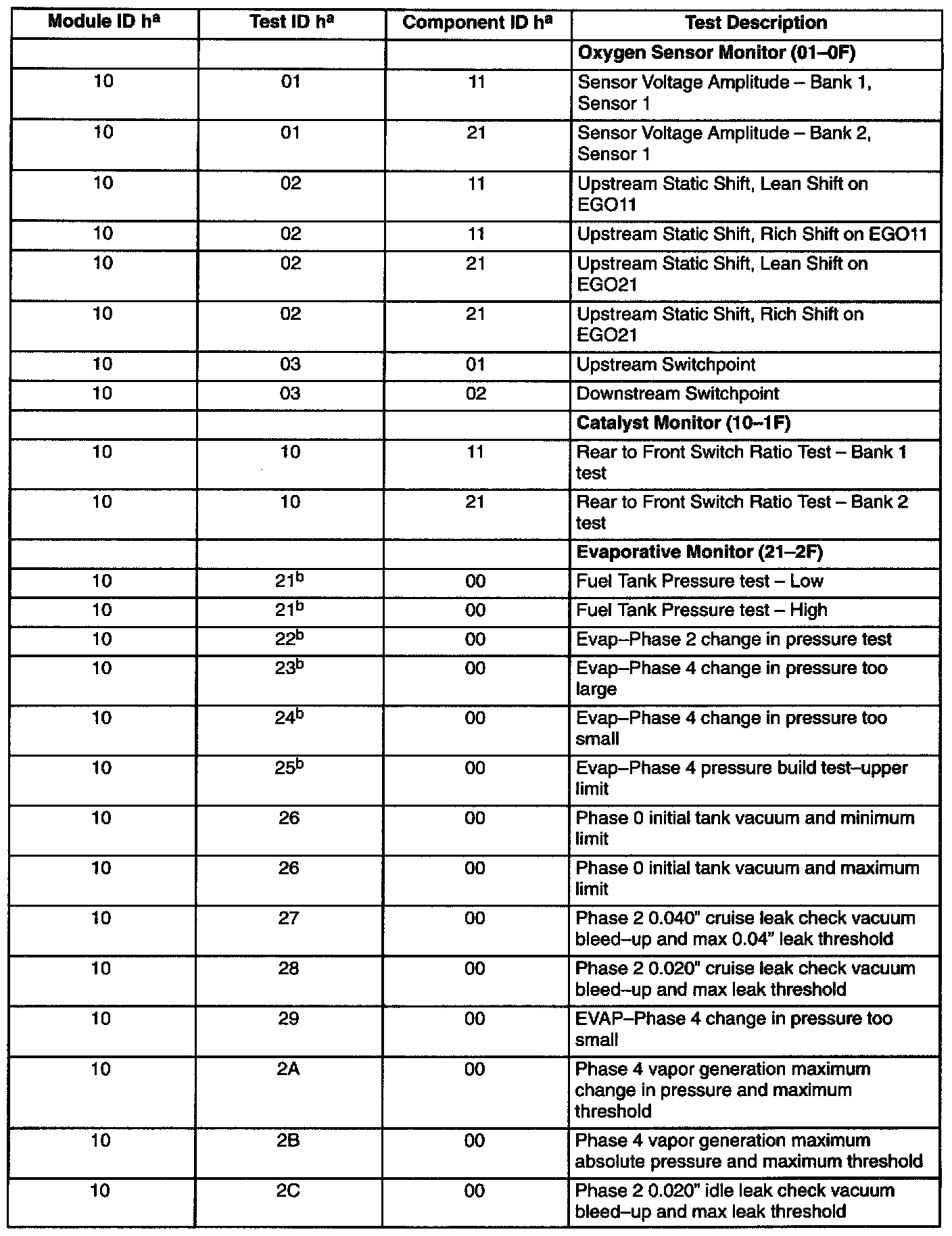

Diagnostic Monitoring Test Results Table (Part 1 Of 2):

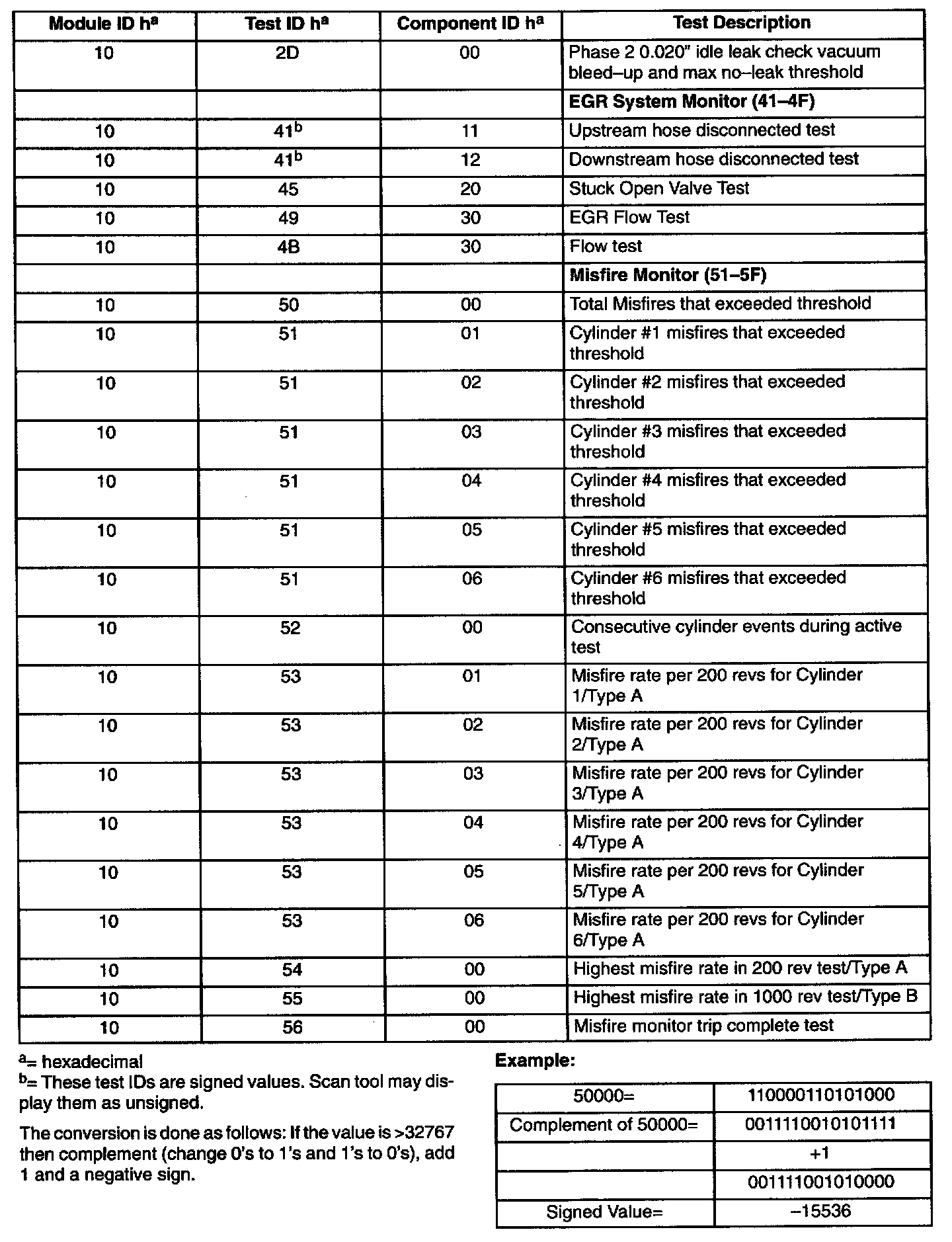

Diagnostic Monitoring Rest Results Table (Part 2 Of 2):

The purpose of this test mode is to allow access to the results of OBD II monitor diagnostic test results. The test values that are stored at the time of the particular monitor completion are displayed when the particular test identification is requested. Refer to the following table for test information.
