Connector End Views

TRANSMISSION CONNECTOR LAYOUT

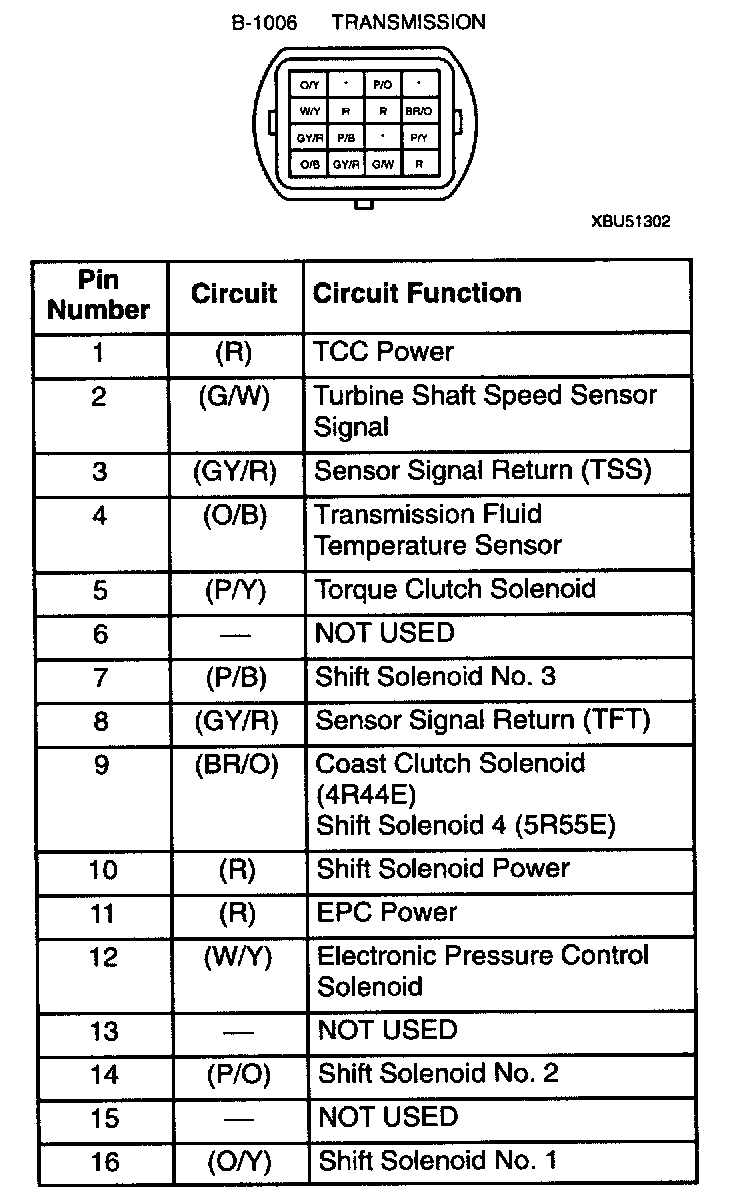

Transmission Vehicle Harness Connector

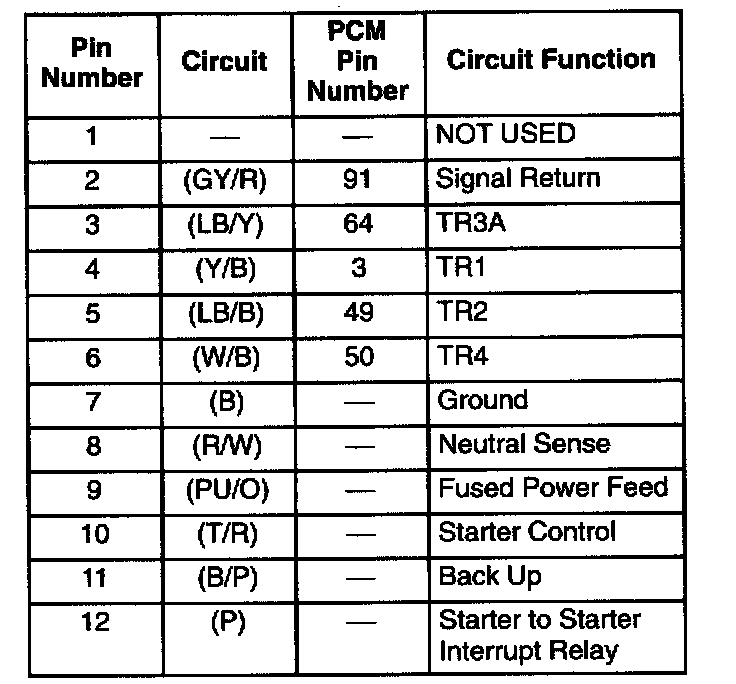

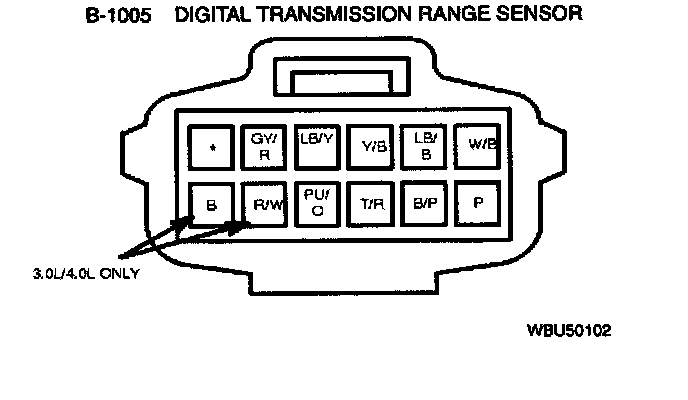

Digital Transmission Range (TR) Sensor Vehicle Harness Connector

Part 1 of 2

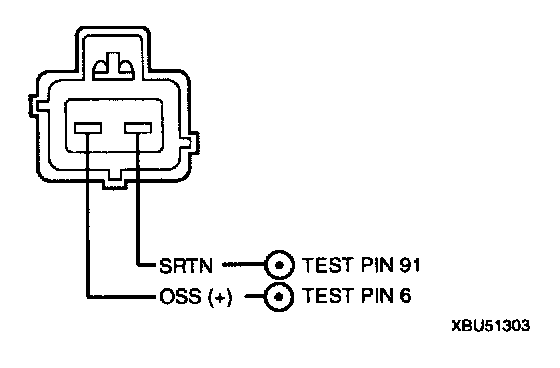

Output Shaft Speed (OSS) Sensor Connector

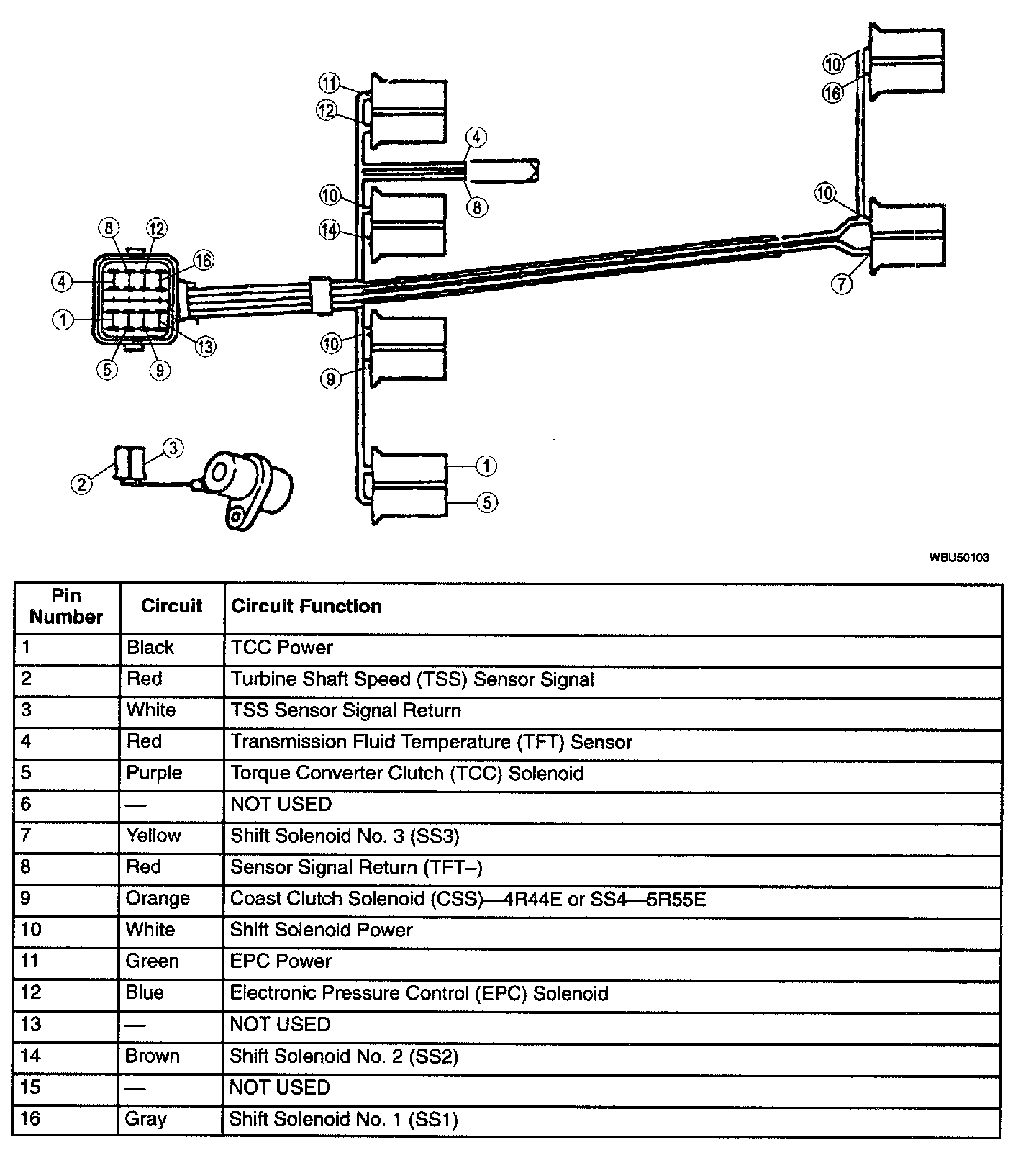

Control Valve Body Wire Harness Diagram
