Output Test Mode Procedure

1. Perform the "New Generation Star (NGS) Tester Hook-Up Procedure".
2. Perform step 1 through step 9 from the "Retrieving DTCs Procedure".
3. Turn key on.

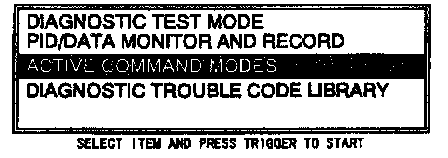

4. Move the cursor to ACTIVE COMMAND MODES. Press the trigger key to enter this selection.
5. Move the cursor to OUTPUT TEST MODE. Press the trigger key to enter this selection.
6. Press MODE (Key #3) repeatedly to change the mode from ALL ON to LOW FAN, HIGH FAN, and ALL OFF Return the mode to ALL ON.
7. Press START (Key #4) to run the fuel pump. Press STOP (Key #4) to turn off the fuel pump.
8. To open and close certain actuators in the emission system, press PIDS (Key #7).
9. Press CLEAR (Key #5) to clear previous selected PIDs.

NOTE:
- To select desired PIDs, place the shaded bar over the item(s) and press trigger. A star symbol appears next to the item when it's selected. Press START (Key #7). The selected PID(s) and values appear.
- You can select 30 PIDs at a time.

10. Press START (Key #4) to turn on the fuel pump. Observe the values change from OFF to ON or from 0% to 100%. Press STOP (Key #4) to turn off the fuel pump.
11. Press CANCEL.
