Transmission Position Sensor/Switch: Service and Repair
DIGITAL TRANSMISSION RANGE SENSOR REMOVAL/INSTALLATIONRemoval Note
1. Disconnect the battery ground cable.
2. Raise and support the vehicle.

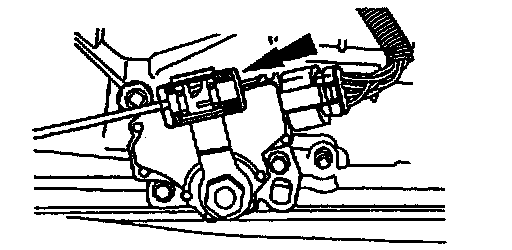

3. Disconnect the shift cable from the manual control outer lever.

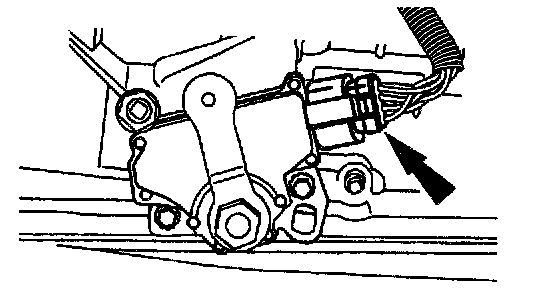

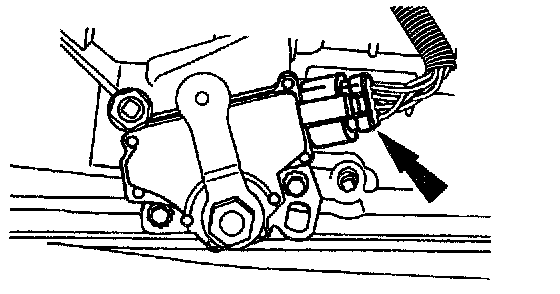

4. Disconnect the digital Transmission Range (TR) sensor electrical connector.

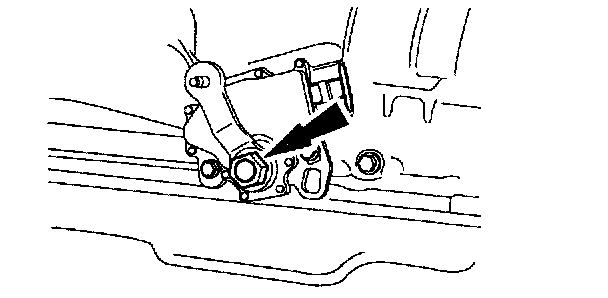

5. Remove the manual control outer lever nut and manual control outer lever.

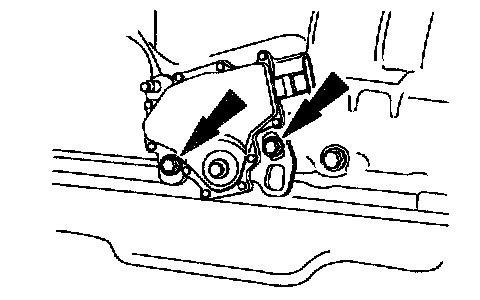

6. Remove the bolts and the digital TR sensor.
Installation Note

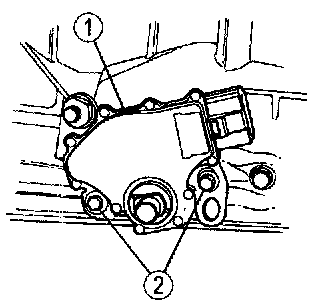

1. Install the digital TR sensor.
1. Position the digital TR sensor.
2. Loosely install the bolts.
Note The manual lever must be in neutral.
2. Adjust the digital TR sensor.

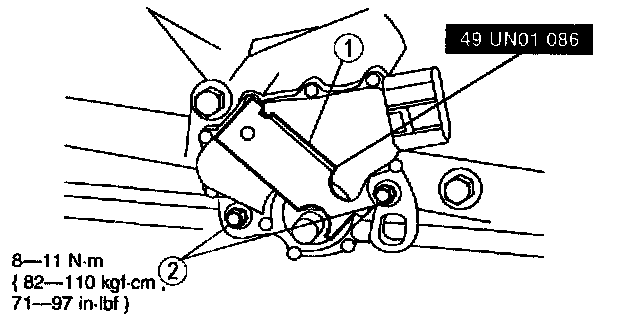

1. Install SST into the three slots on the digital TR sensor.
2. Tighten the bolts

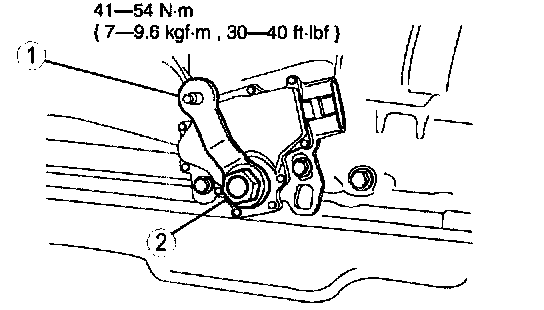

3. Install the manual control outer lever.
1. Install the manual control outer lever.
2. Install the manual control outer lever nut.
4. Connect the TR sensor electrical connector.

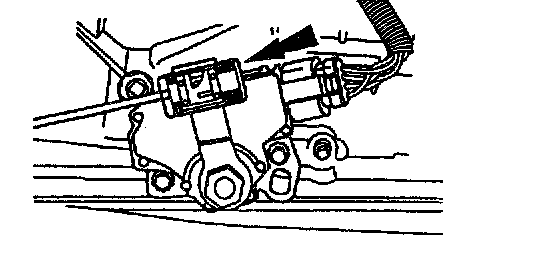

5. Connect the shift cable to the manual control outer lever.
6. Adjust the shift cable. Refer to Transmission and Drivetrain; Automatic Transmission/Transaxle; Shift Cable, A/T.
7. Lower the vehicle.
