Ignition Coil: Service and Repair
1.

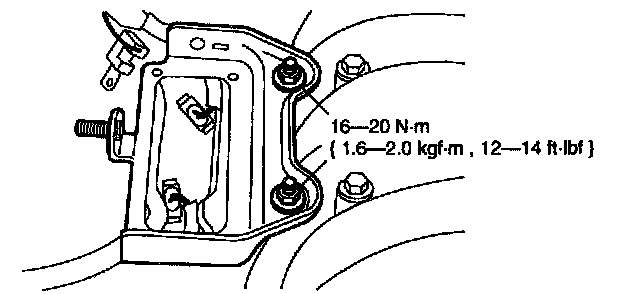

Remove the
ignition coil from the bracket.
2.

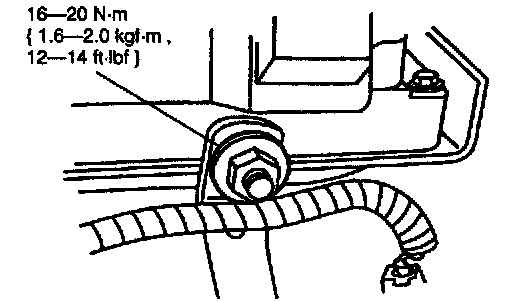

Remove the nut.
3.

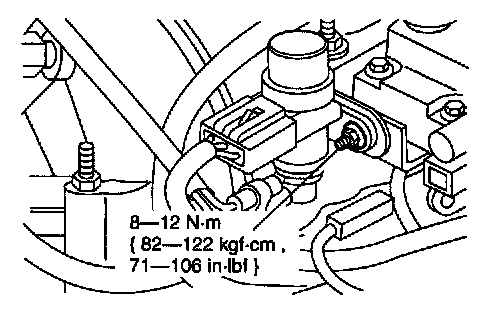

Remove the nut and position the EGR vacuum regulator solenoid out of the way.
4.
Remove the nuts and remove the
ignition coil mounting bracket from the upper intake manifold.
5.
Install in reverse order of removal.
