Ignition System: Testing and Inspection

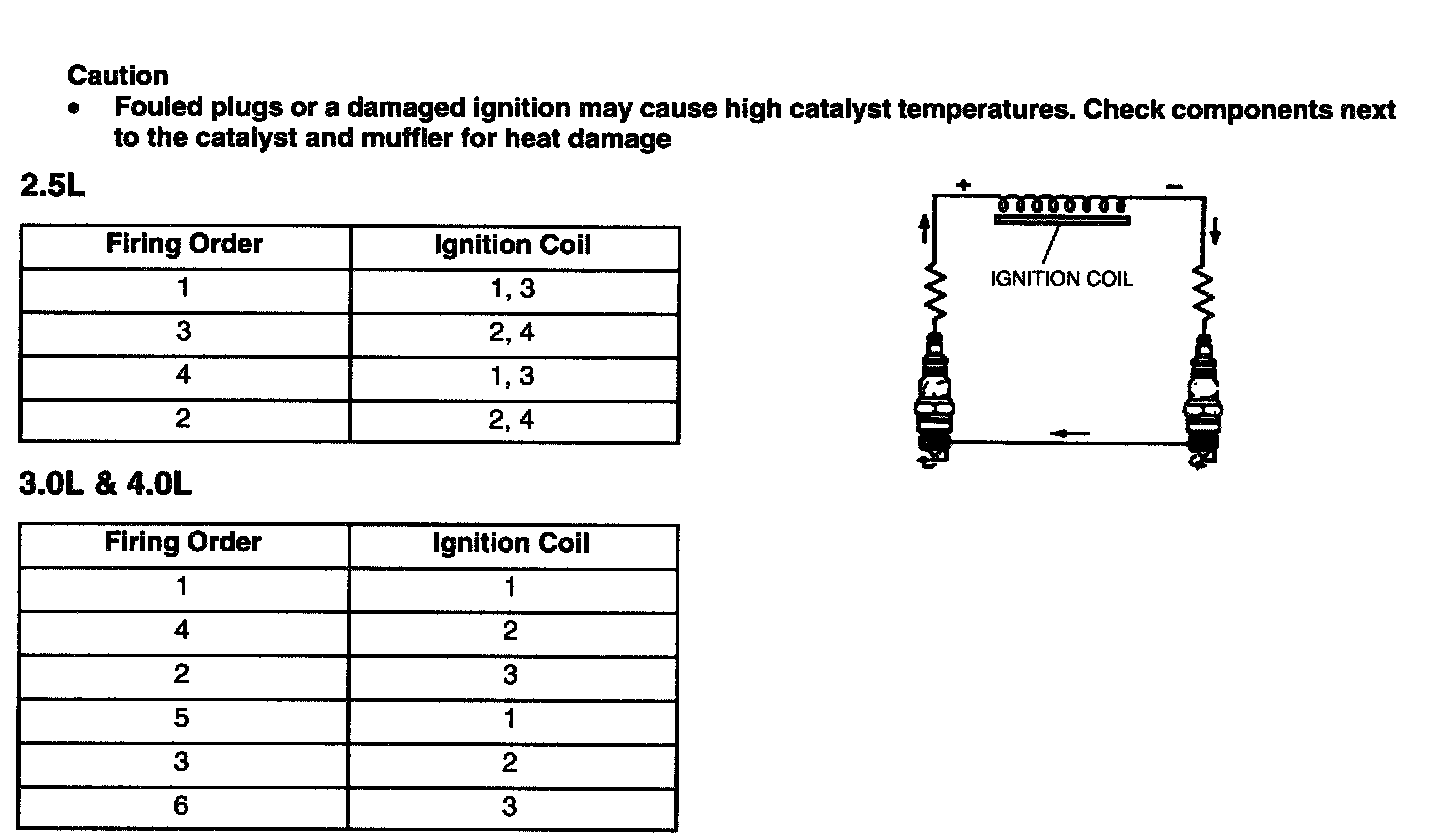

Firing Order:

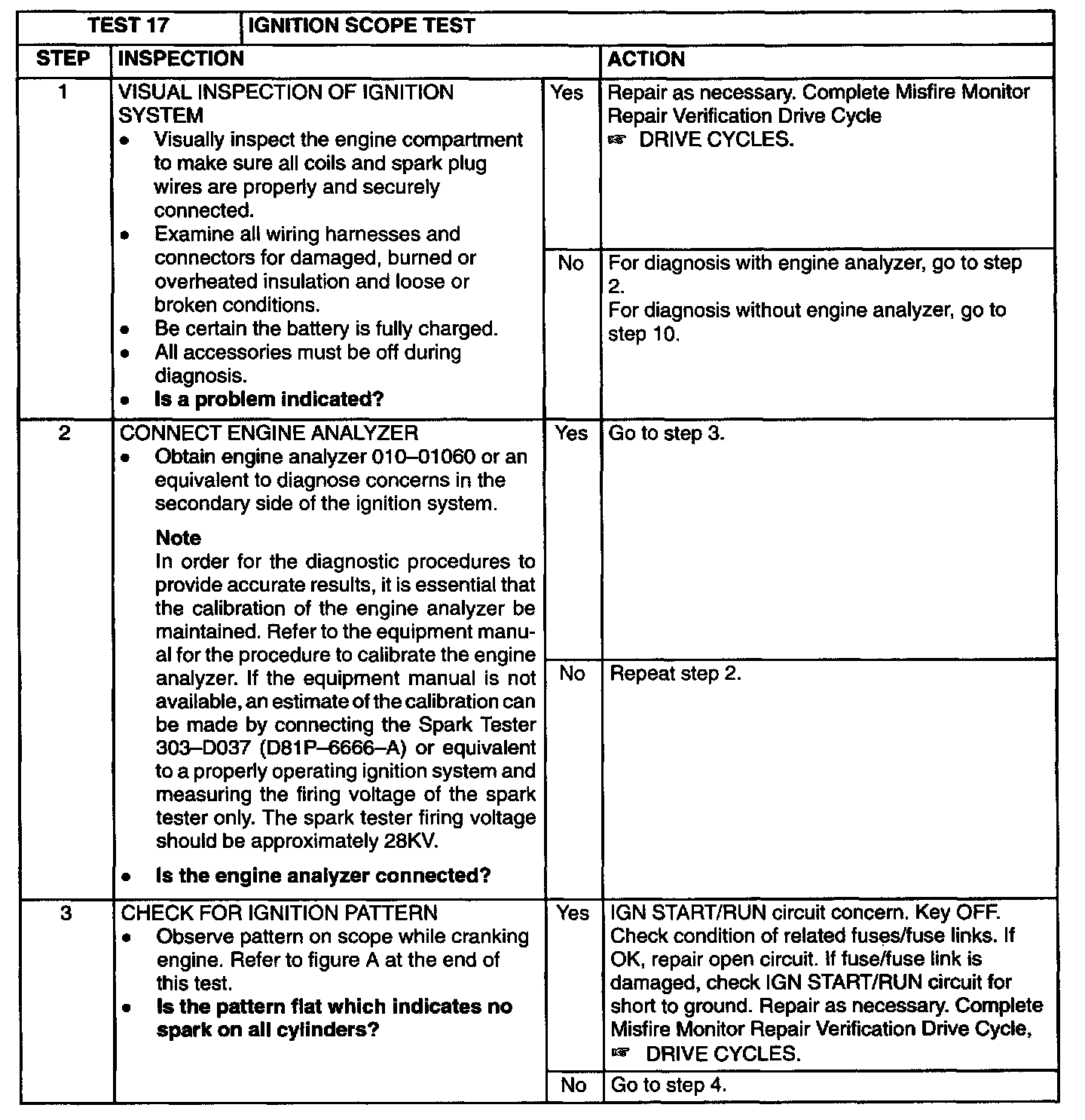

Steps 1 - 3:

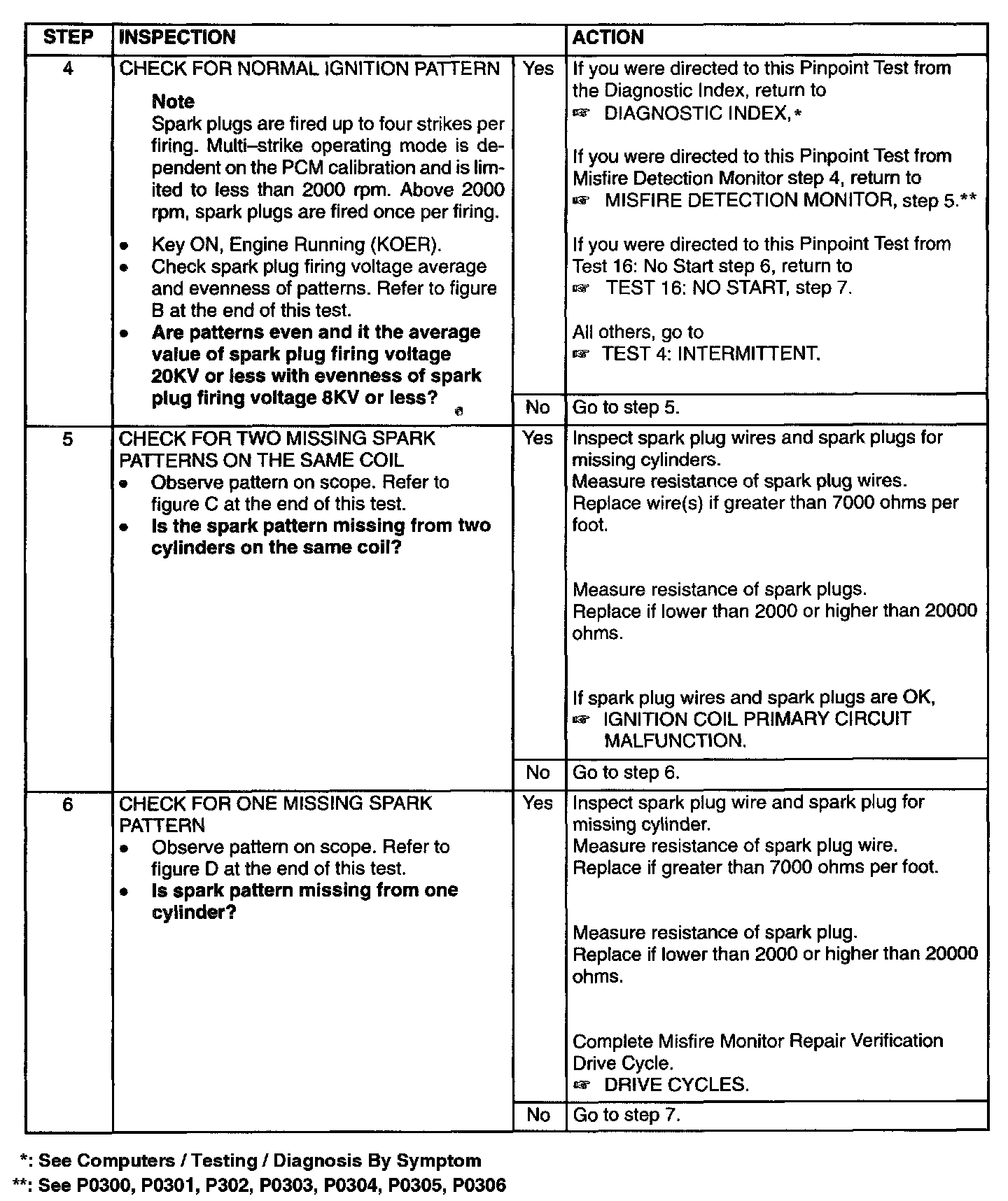

Steps 4 - 6:

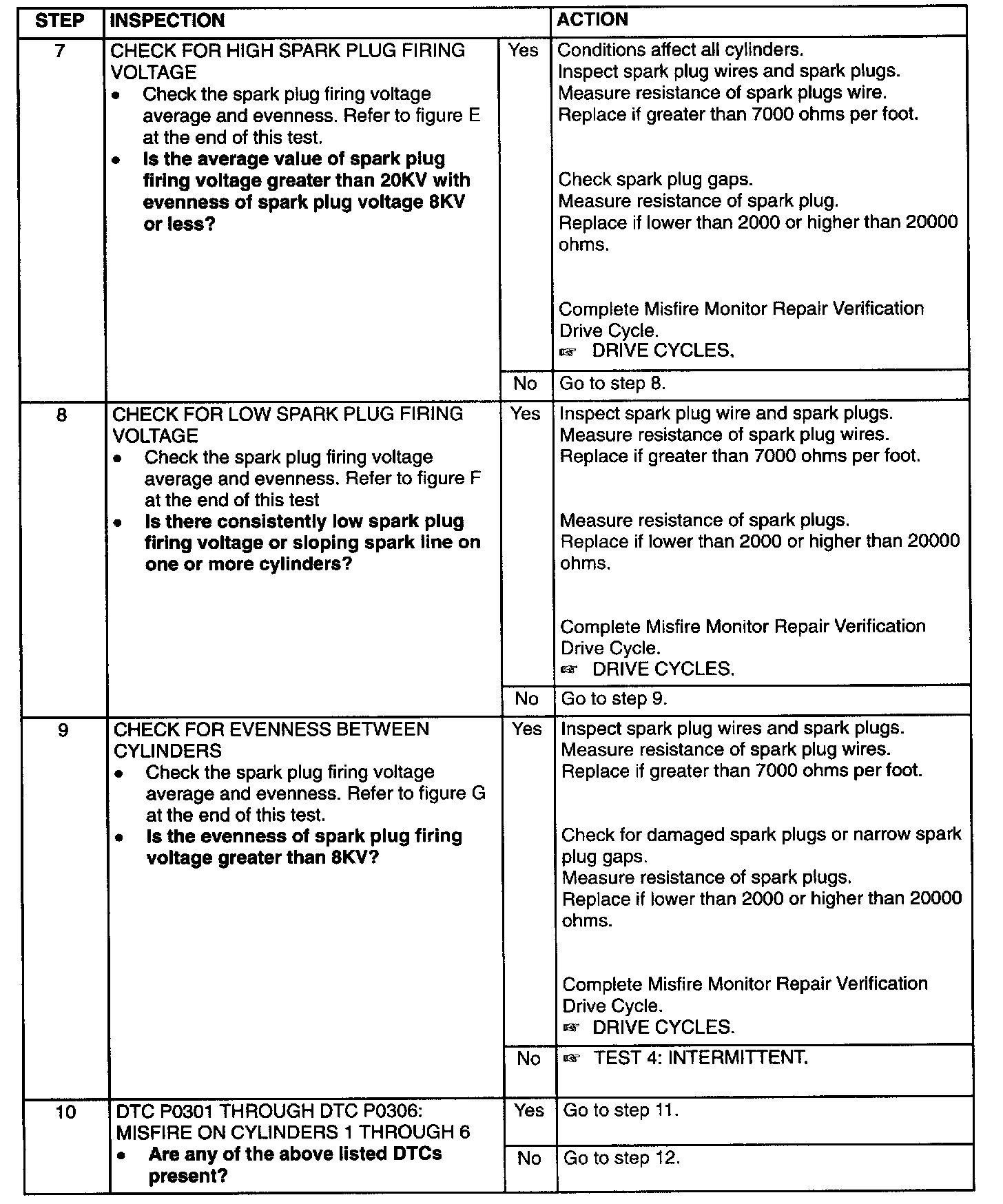

Steps 7 - 10:

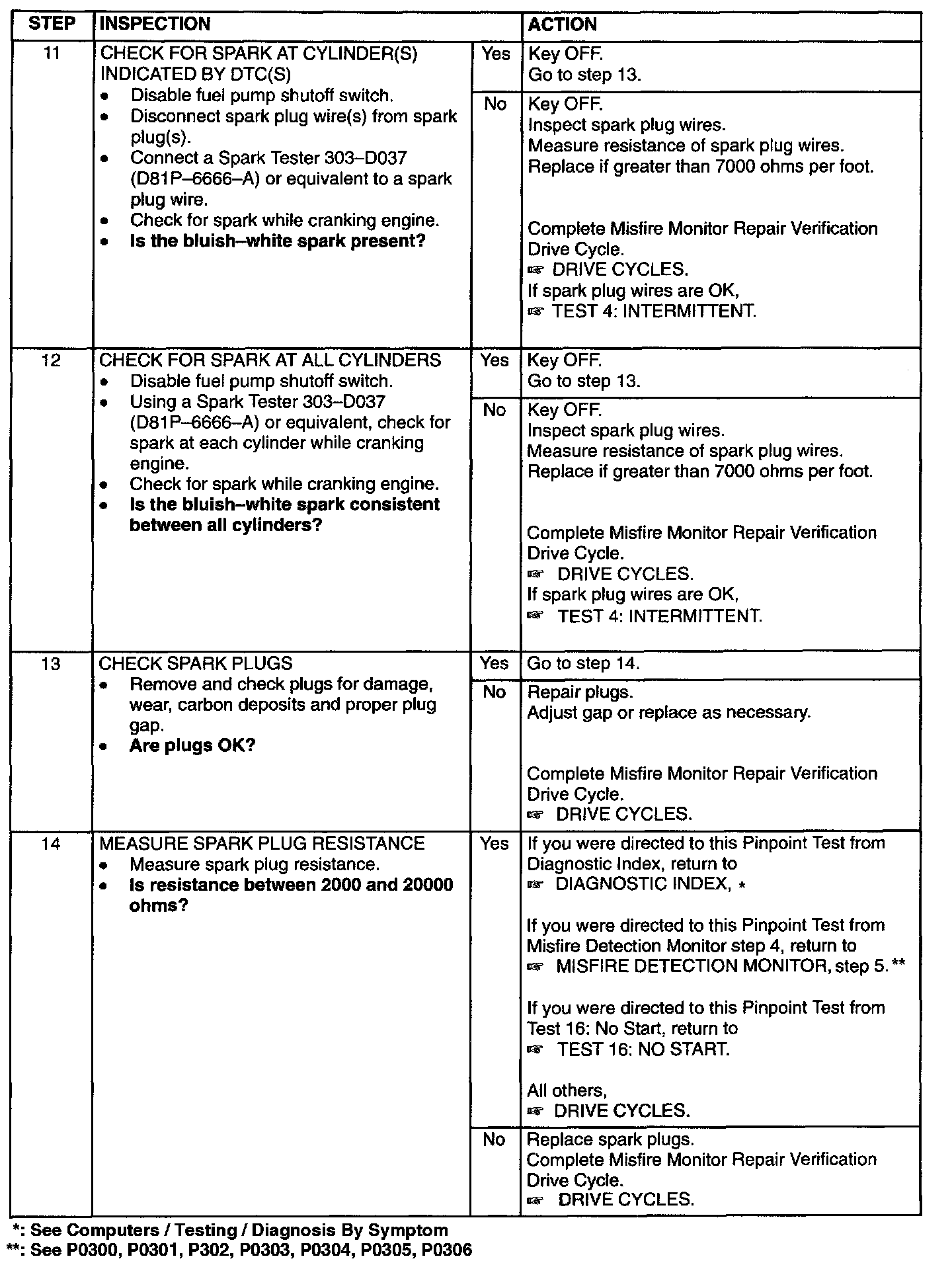

Steps 11 - 14:
