Compression Check: Specifications
The compression pressures are considered within specification if the lowest reading cylinder is within 75% of the highest.
Compression:

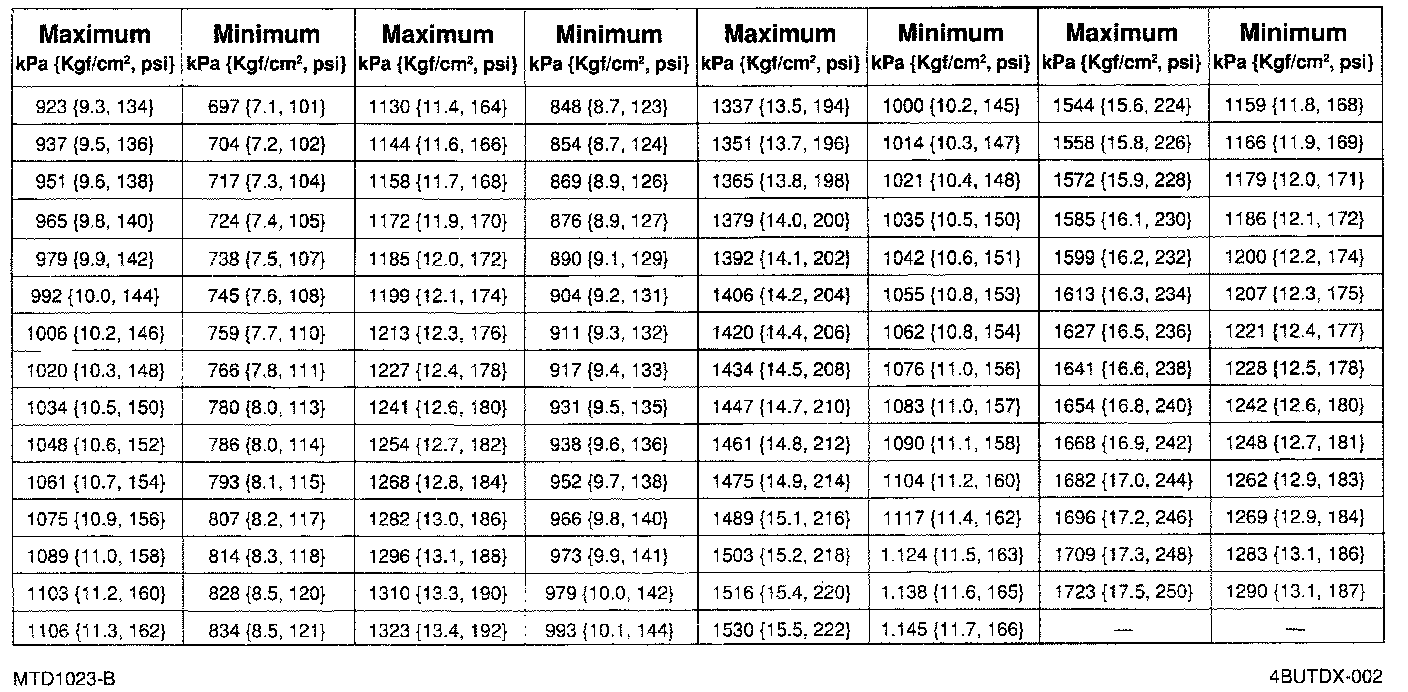

Lowest reading cylinder within 75 percent of the highest. (Refer to image.)
