Pinpoint Test
>>
Pinpoint Test 2
Pinpoint Test 2

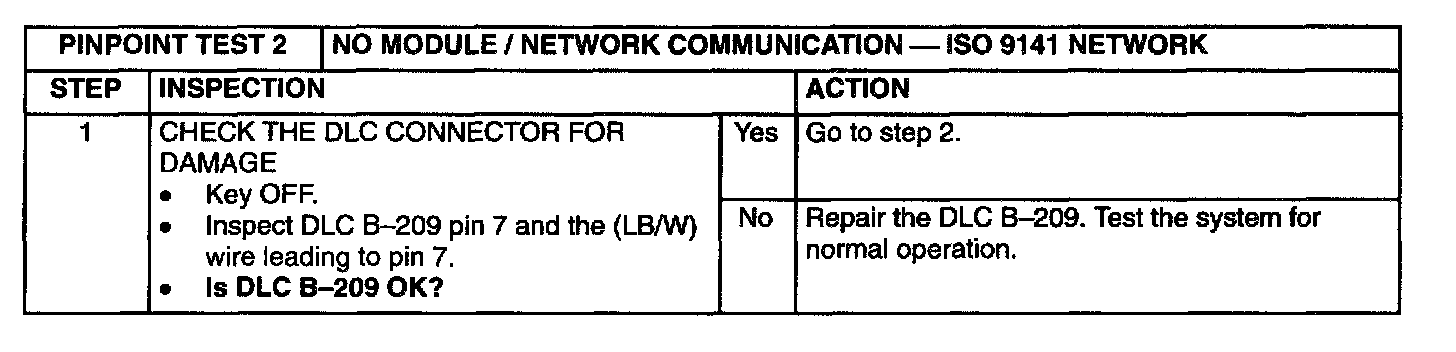

Pinpoint Test 2 (Step 1):
Pinpoint Test 2 (Steps 2 - 5):

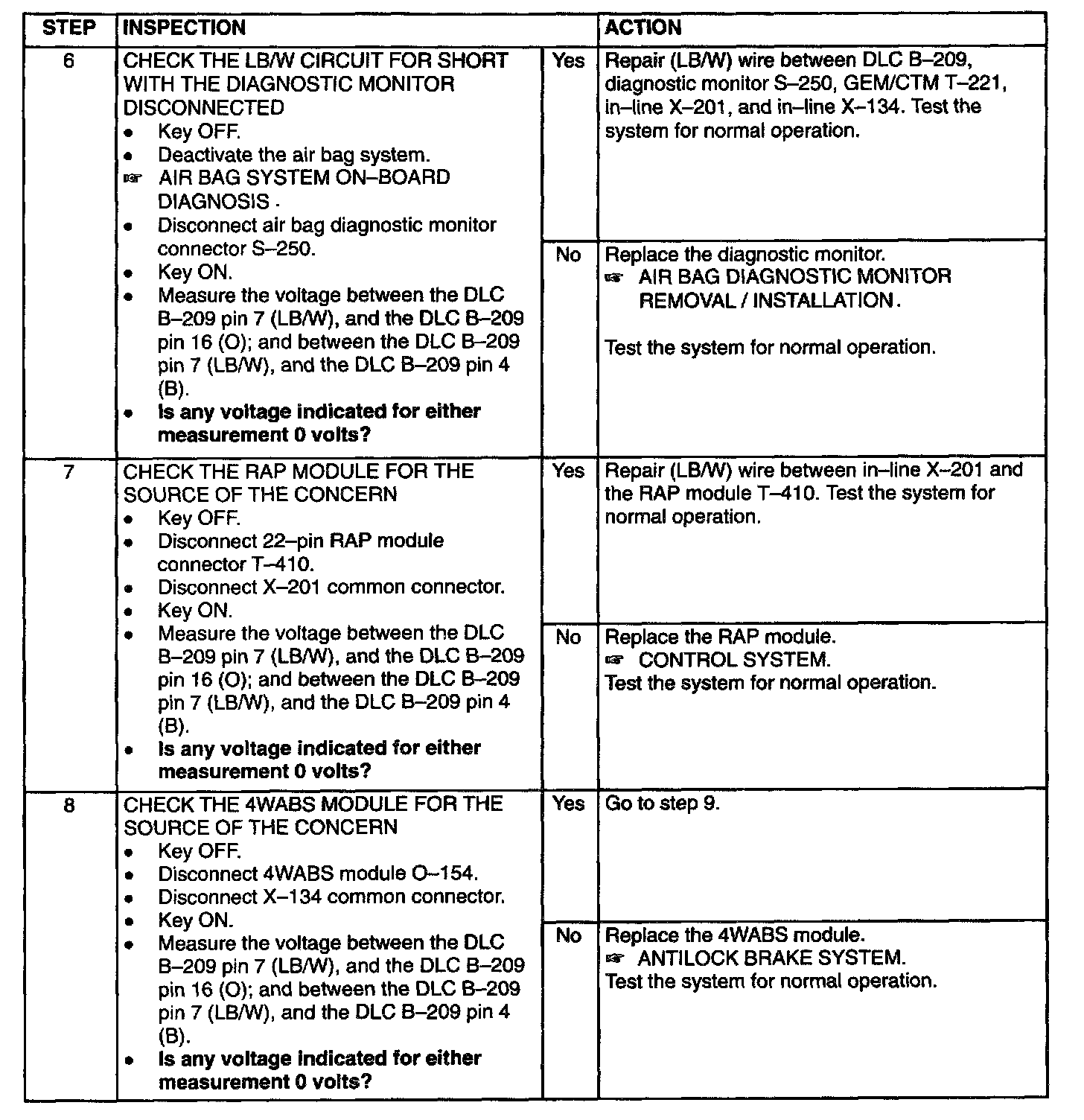

Pinpoint Test 2 (Steps 6 - 8):

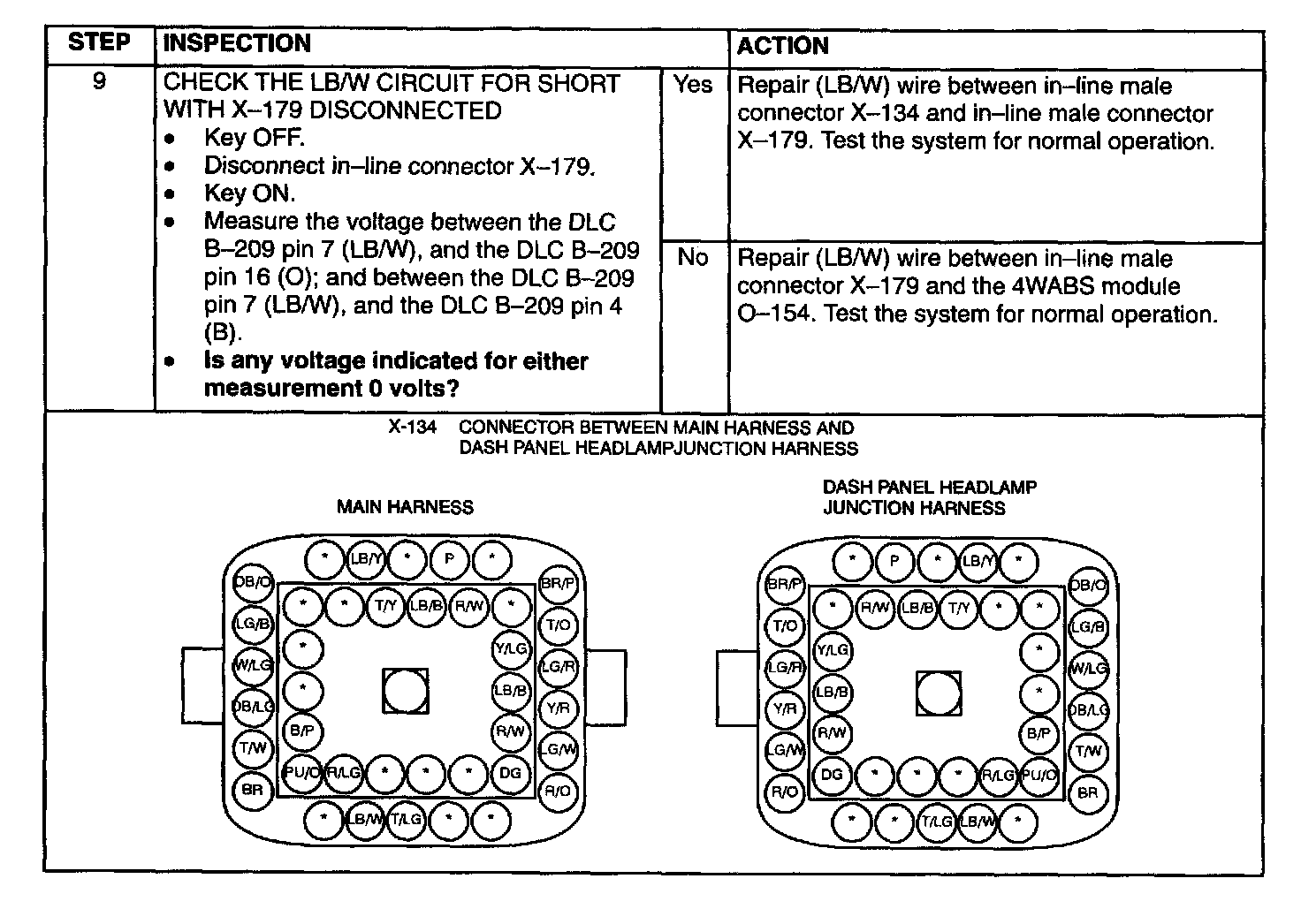

Pinpoint Test 2 (Step 9):

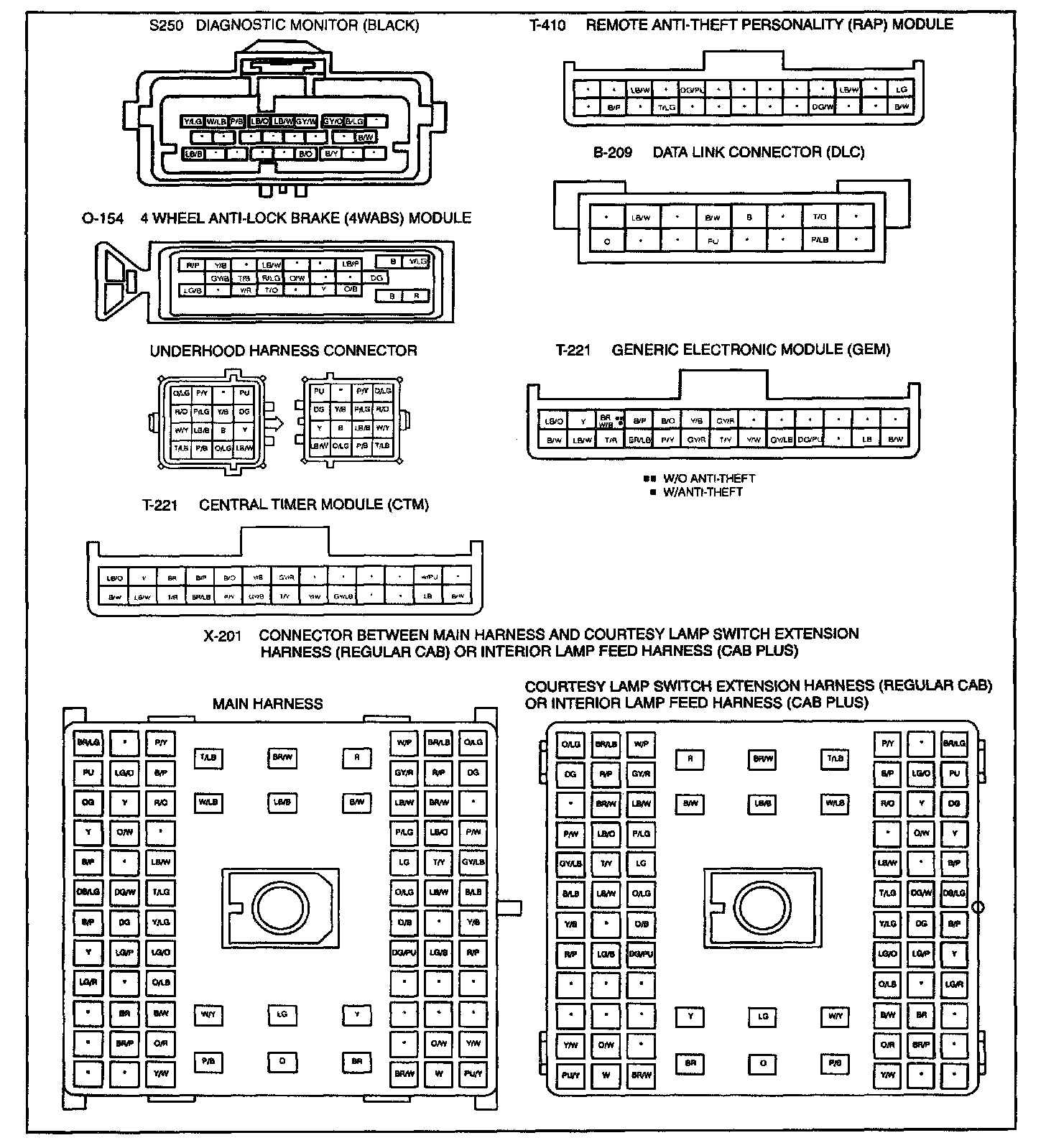

Pinpoint Test 2:
