Differential Assembly

SPECIFICATIONS

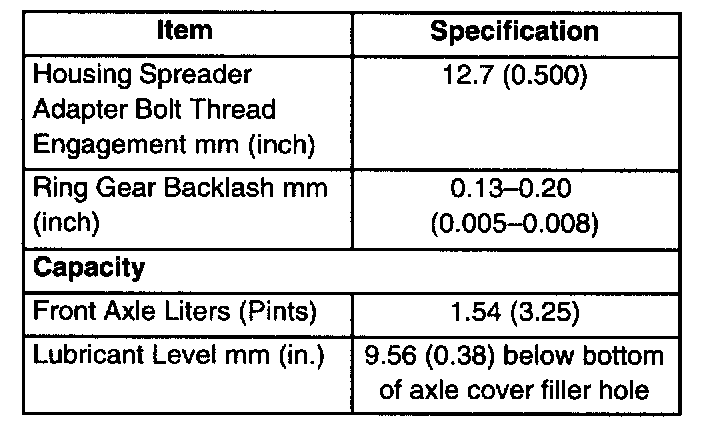

Front Differential

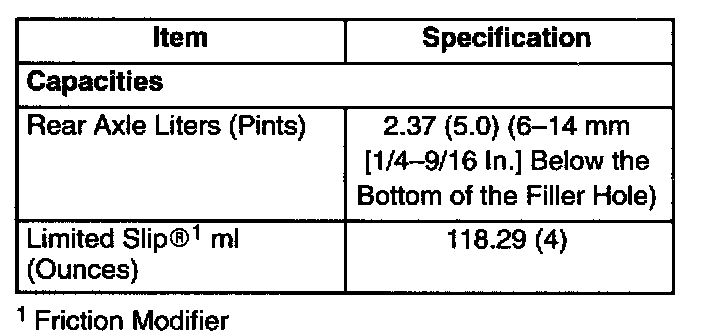

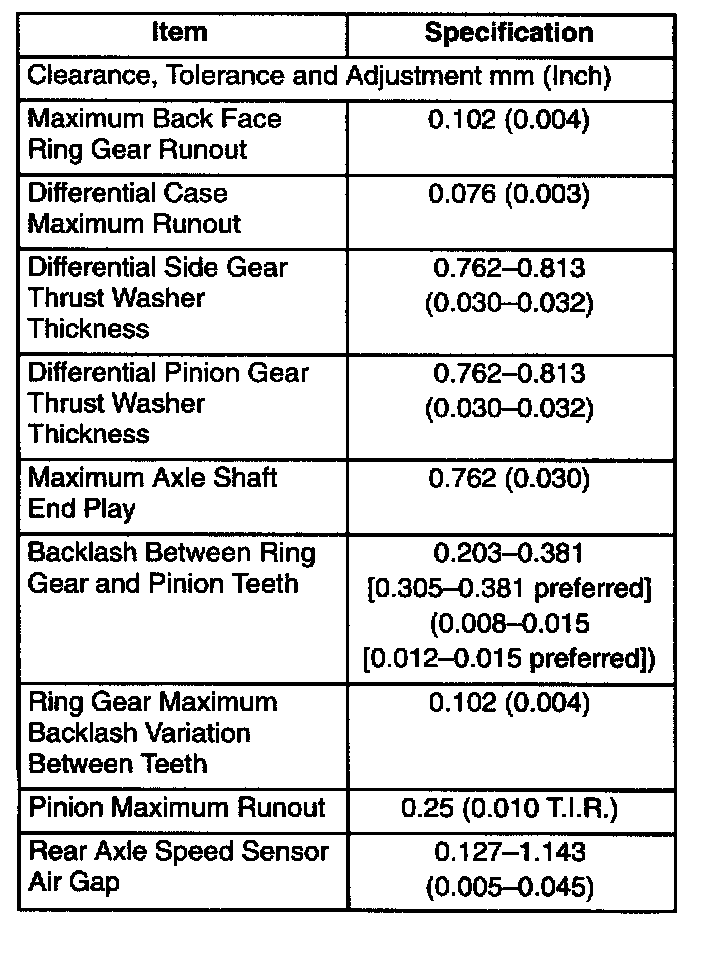

Rear Differential

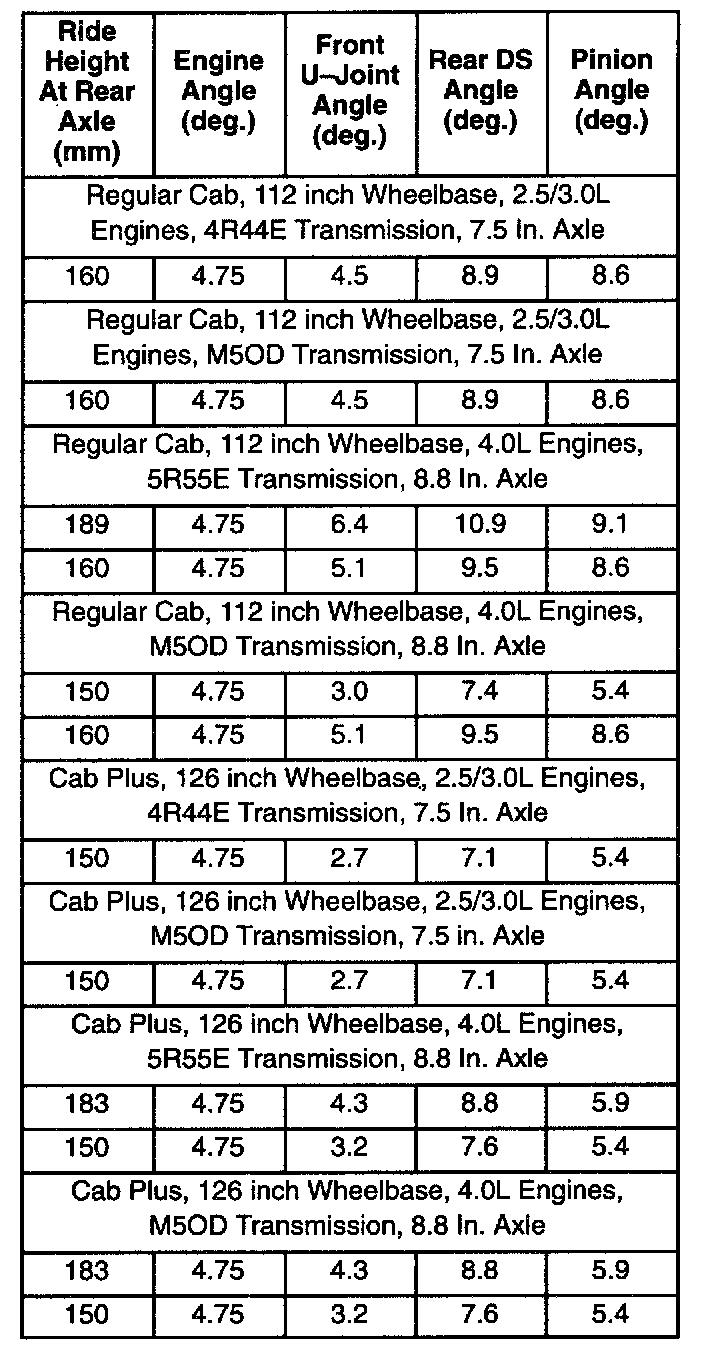

Rear Driveline Angles @ Curb (4x2)

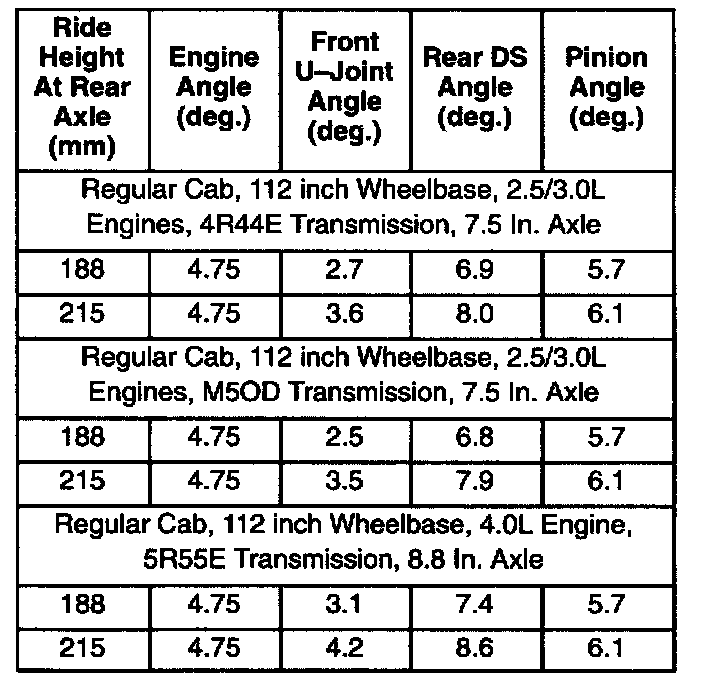

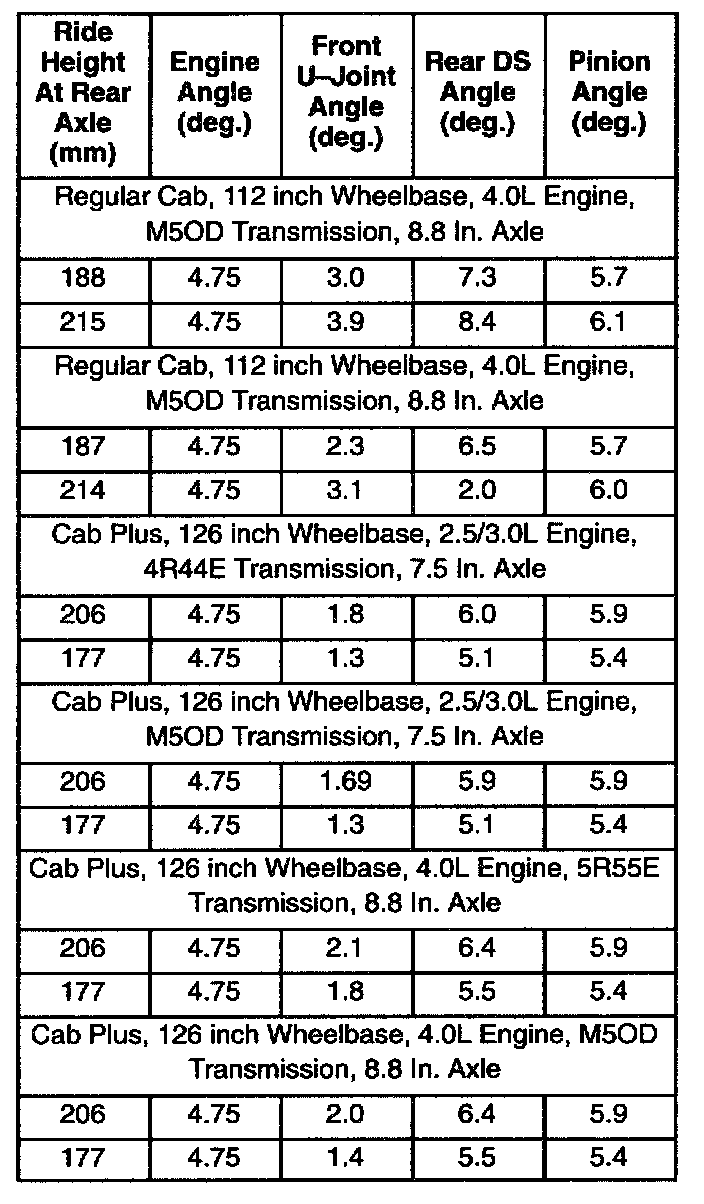

Rear Driveline Angles @ Curb (4x4)
