Starter Motor: Service and Repair

1. Disconnect the negative battery cable.
2. Raise vehicle on hoist and support with safety stands.

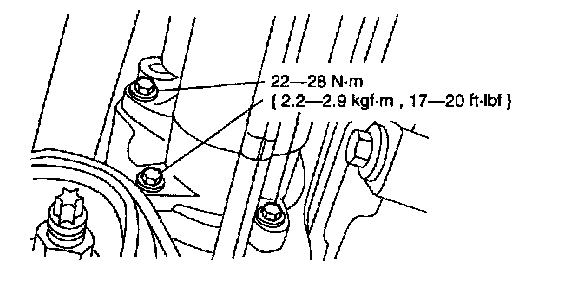

3. Remove the bolts and lower the starter motor.
4. Remove the cap.

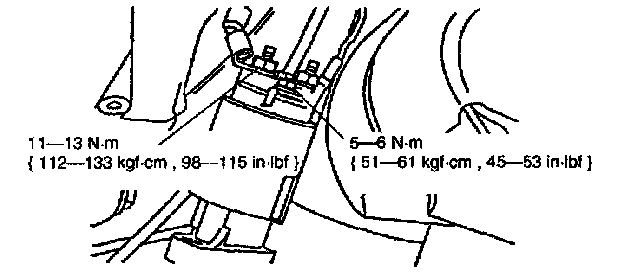

5. Remove the terminal nuts and remove the starter motor.
6. Install in reverse order of removal.
