Wiper and Washer Systems: Locations




















Connector Locations: Engine Compartment

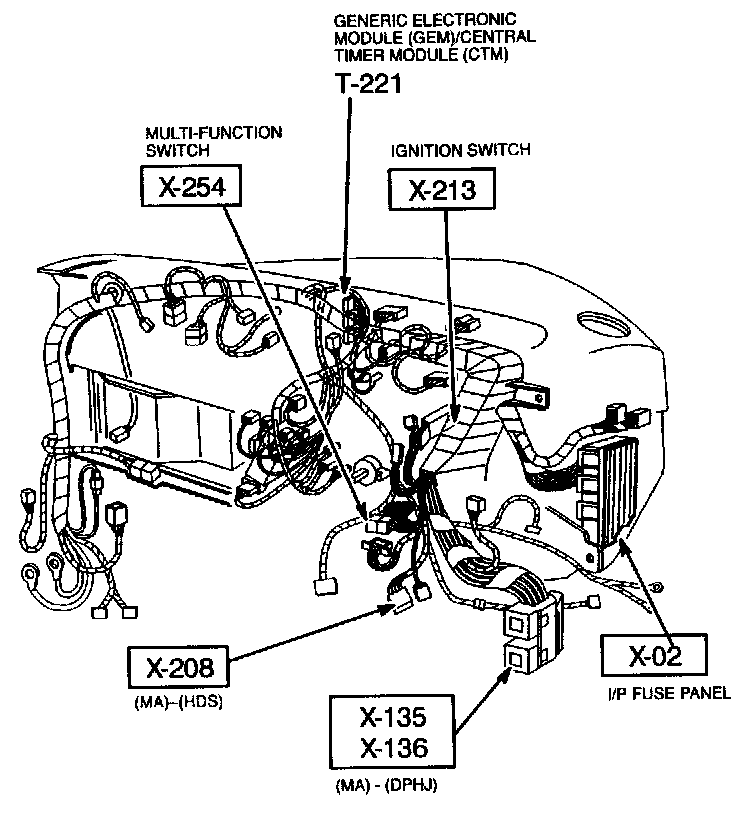

Connector Locations: Overall Vehicle and Dashboard
