Cruise Control: Locations

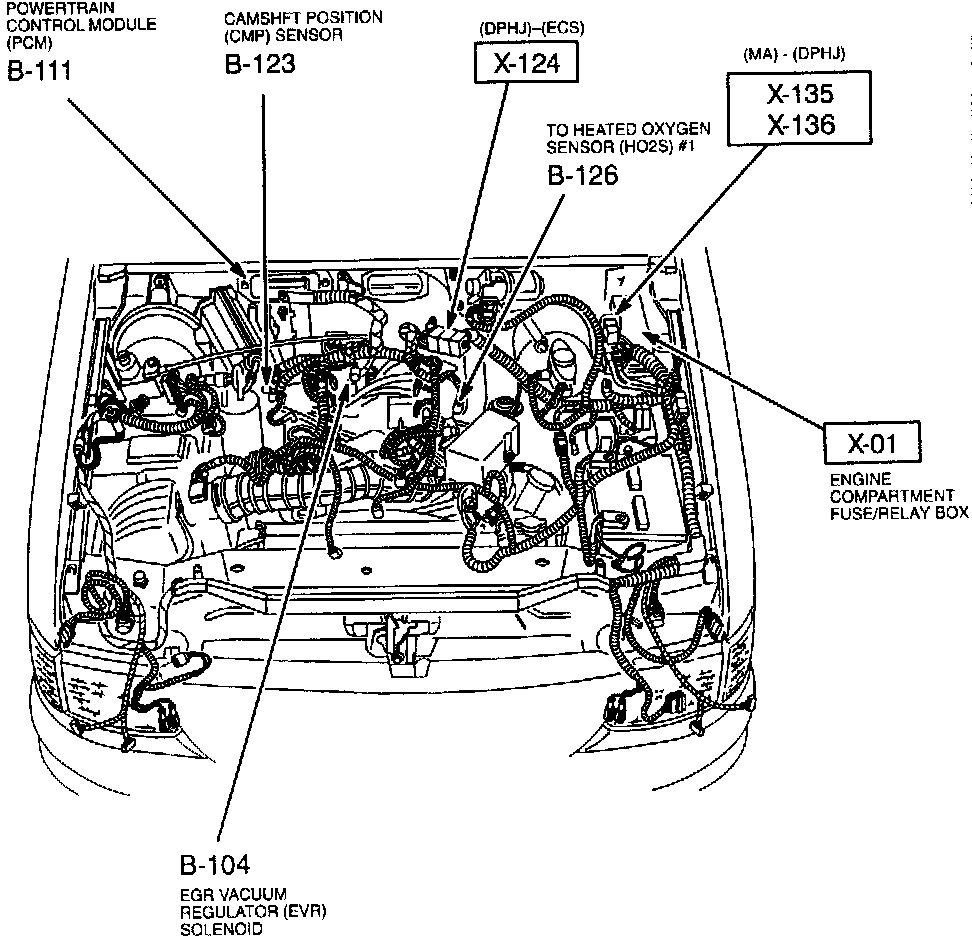

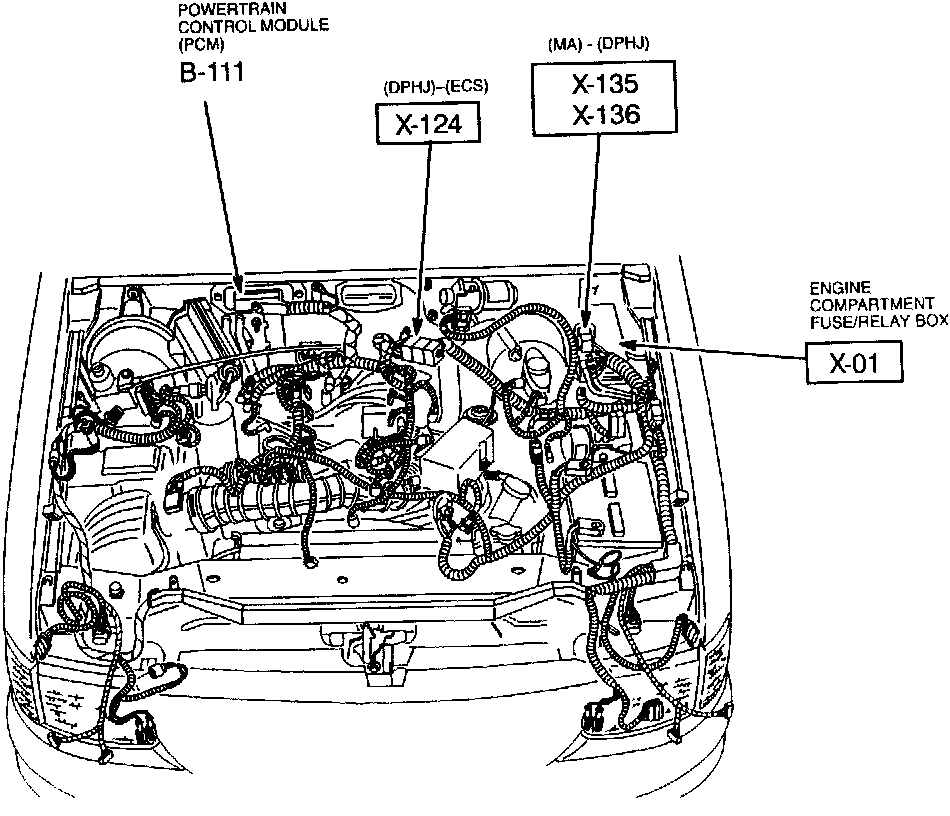

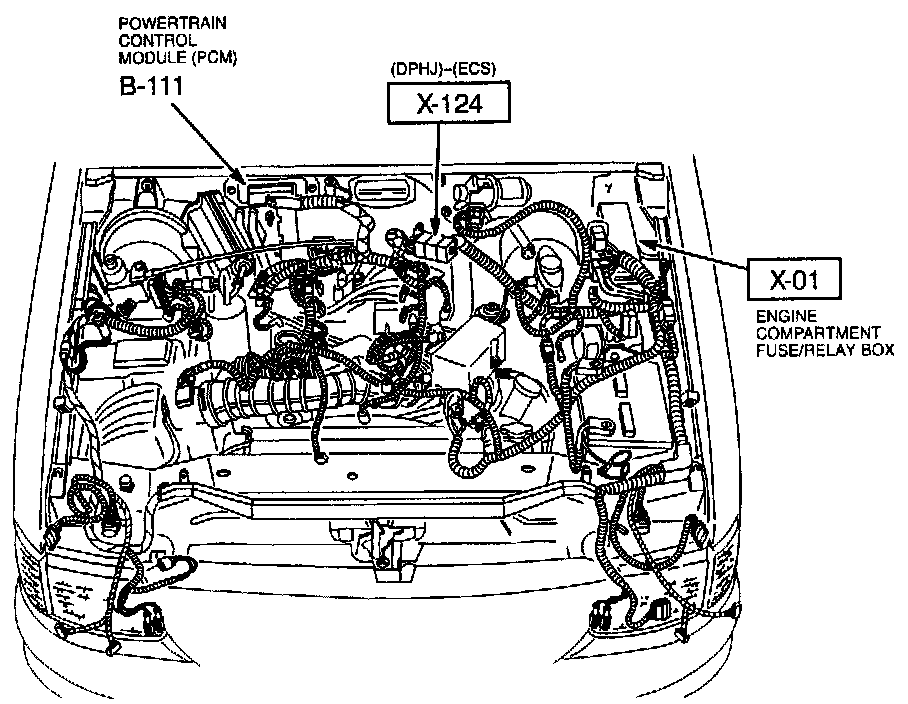

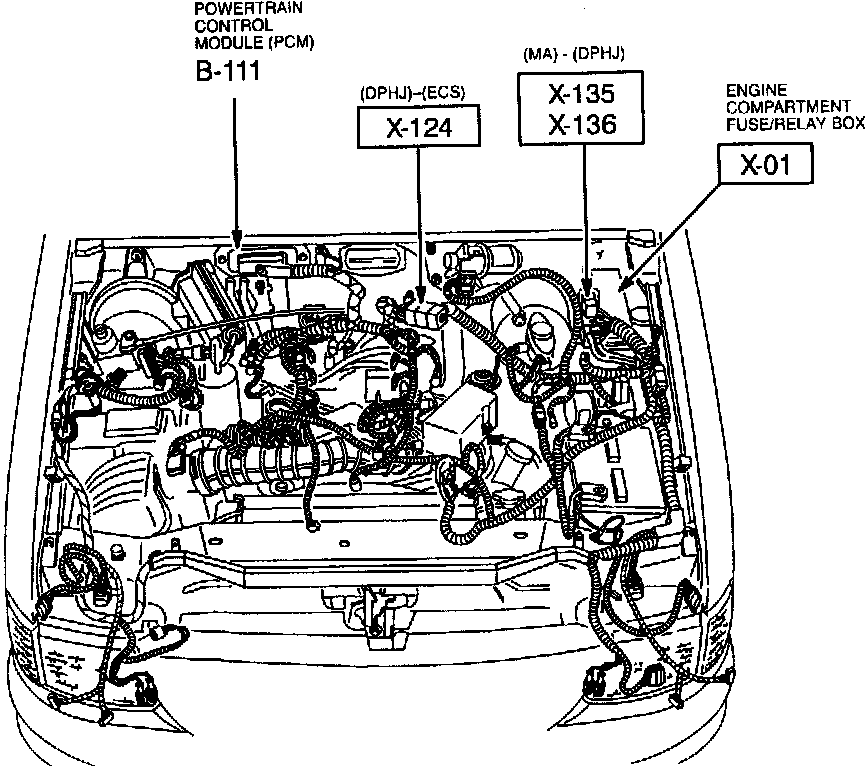

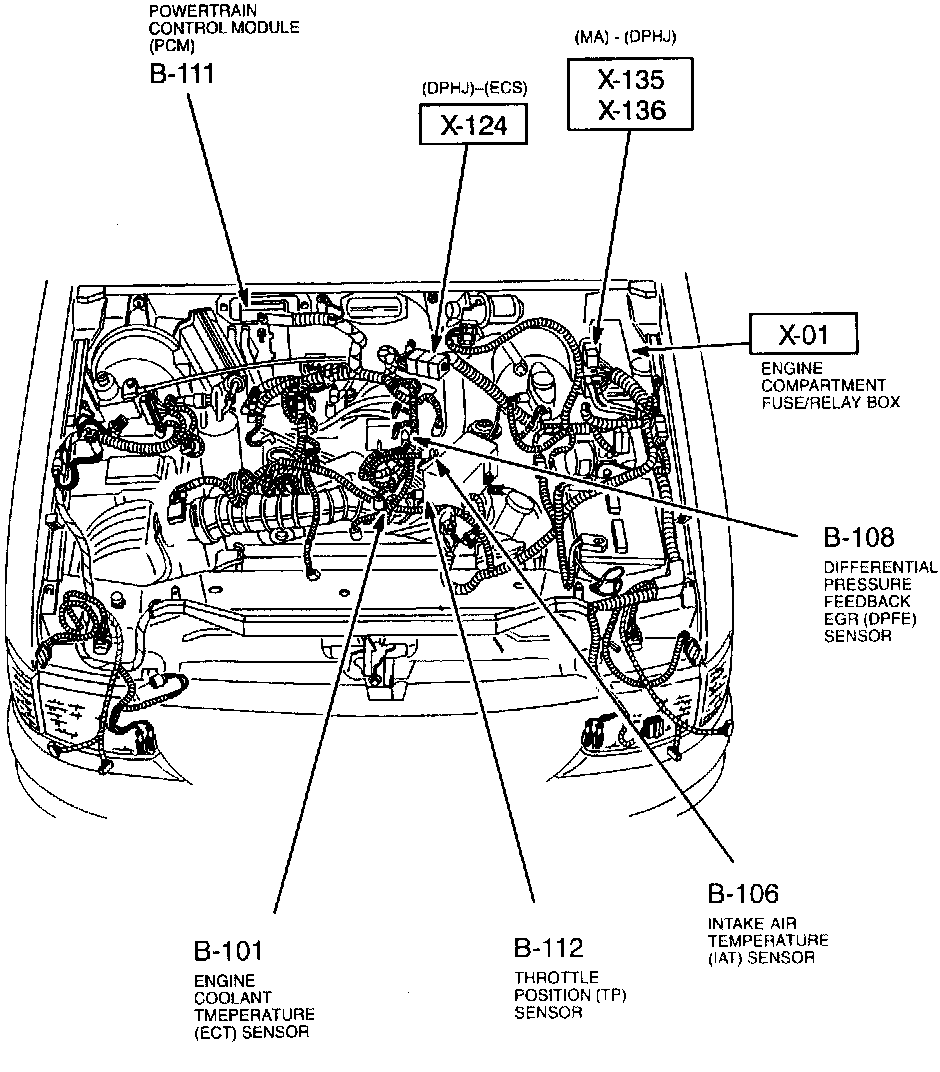

Connector Locations: Engine Compartment





Connector Locations: Overall Vehicle and Dashboard
