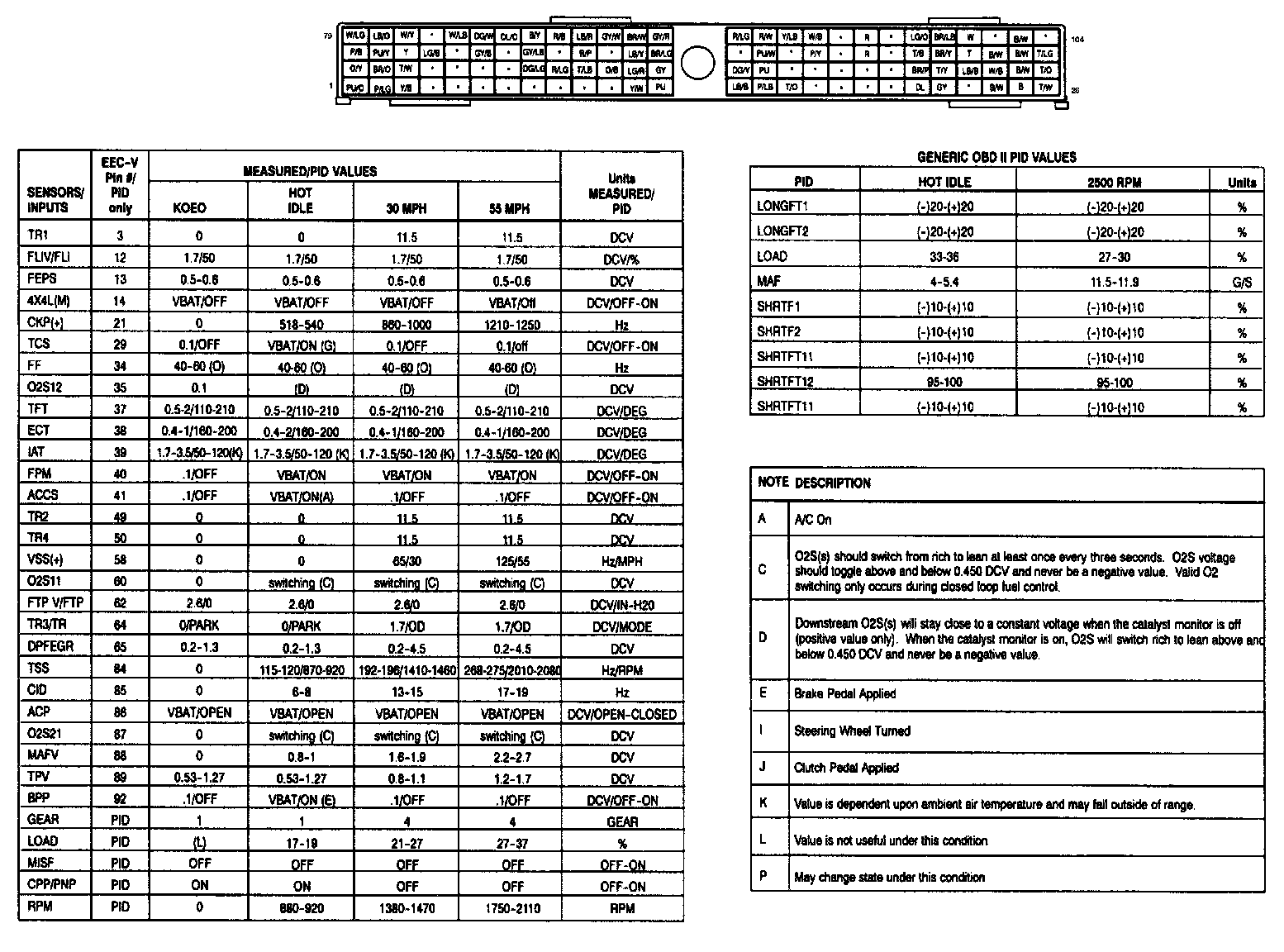

PID/Data Monitor Reference Value (Flexible Fuel A/T) (Part 1 Of 2):

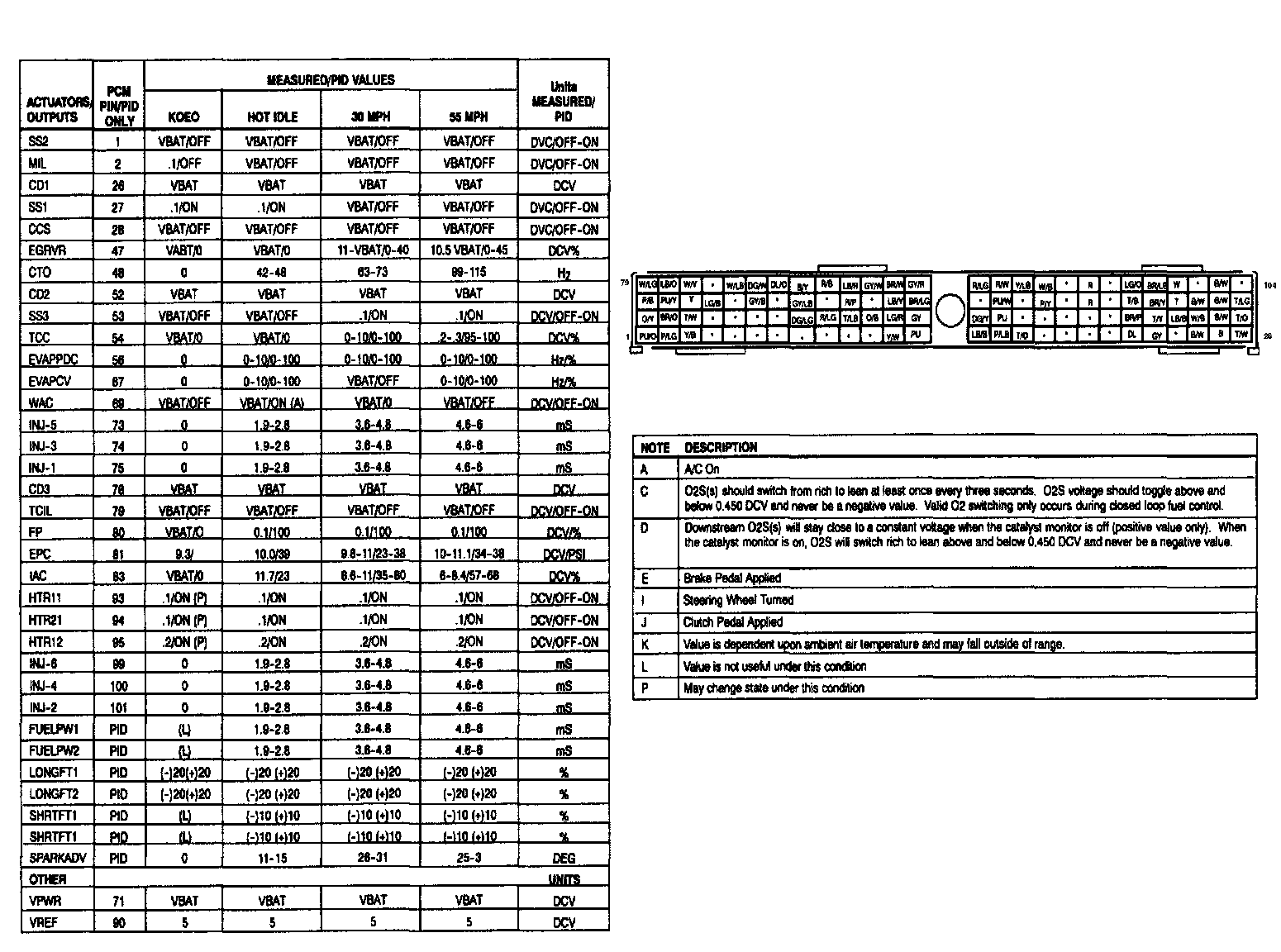

PID/Data Monitor Reference Value (Flexible Fuel A/T) (Part 2 Of 2):
