Camshaft Sensor

1. Disconnect negative battery cable.

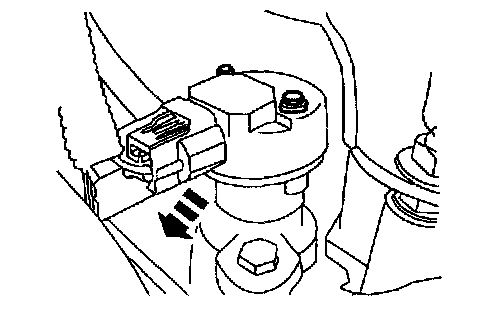

2. Disconnect the connector and remove the camshaft position (CMP) sensor from the camshaft synchronizer.
3. Install in reverse order of removal.

Tightening torque
2.5 - 3.5 Nm { 26 - 36 kg.cm, 23 - 30 in.lb }
