Generator

1. Disconnect the negative battery cable.
2. Remove the air cleaner outlet tube.
3. Remove the drive belt.

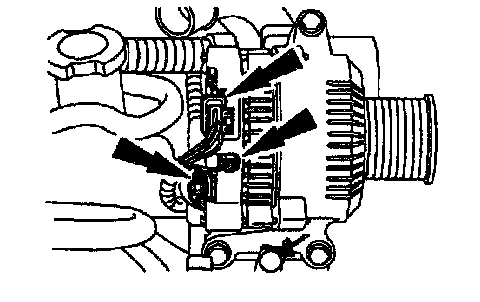

4. Disconnect the electrical connectors.

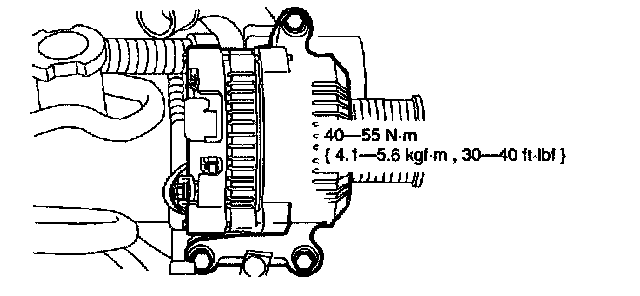

5. Remove the wiring harness to generator pushpin.




6. Remove the bolts and generator.
7. Install in reverse order of removal.
