Control Module: Service and Repair

ELECTRONIC SHIFT CONTROL MODULE REMOVAL/INSTALLATION





1. Remove center trim panel.

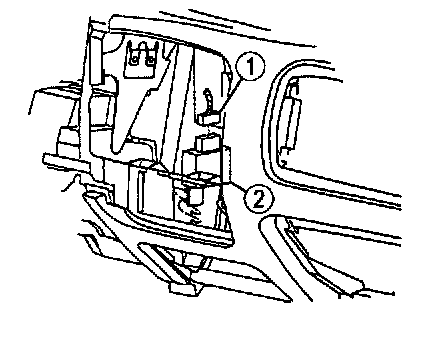

2. Disconnect connector (1).
3. Remove module (2).





4. Install in reverse order of removal.
