Door Lock Switch

1. Disconnect the negative battery Gable.
2. Remove the door lock switch.

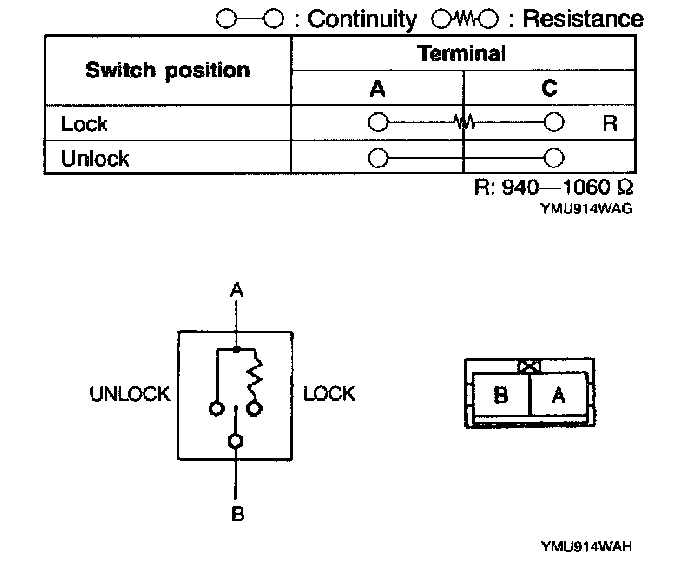

3. Inspect for continuity between the door lock switch terminals using an ohmmeter.
- If not as specified, replace the door lock switch.
