Sliding Door Lock-Link Switch

With Theft-deterrent System

NOTE: The sliding door lock-link switch is together with the sliding door lock actuator.

1. Disconnect the negative battery cable.
2. Remove the sliding door trim.
3. Turn the door screen over.
4. Disconnect the sliding door lock actuator connector.

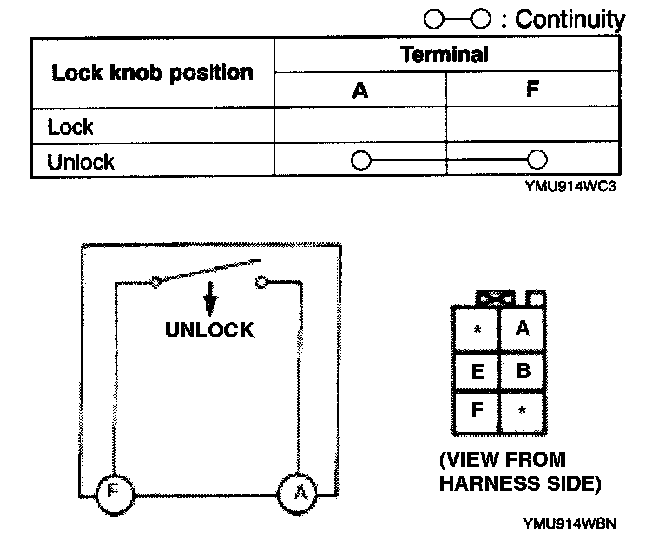

5. Inspect for continuity between the sliding door lock-link switch terminals using an ohmmeter.
- If not as specified, replace the sliding door lock actuator.
