Rearview Mirror

REMOVAL

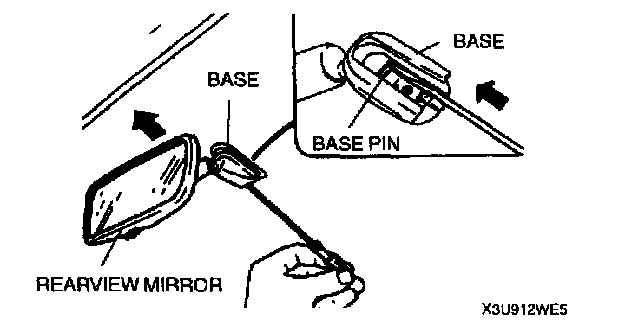

1. Insert a flathead screwdriver between the mirror and the base.




2. Push the base pin down to remove the rearview mirror.

INSTALLATION




1. Install the rearview mirror onto the base.
