Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mazda
>>
2000
>>
MPV DX V6-2.5L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Cruise Control
>>
Schematic
Schematic

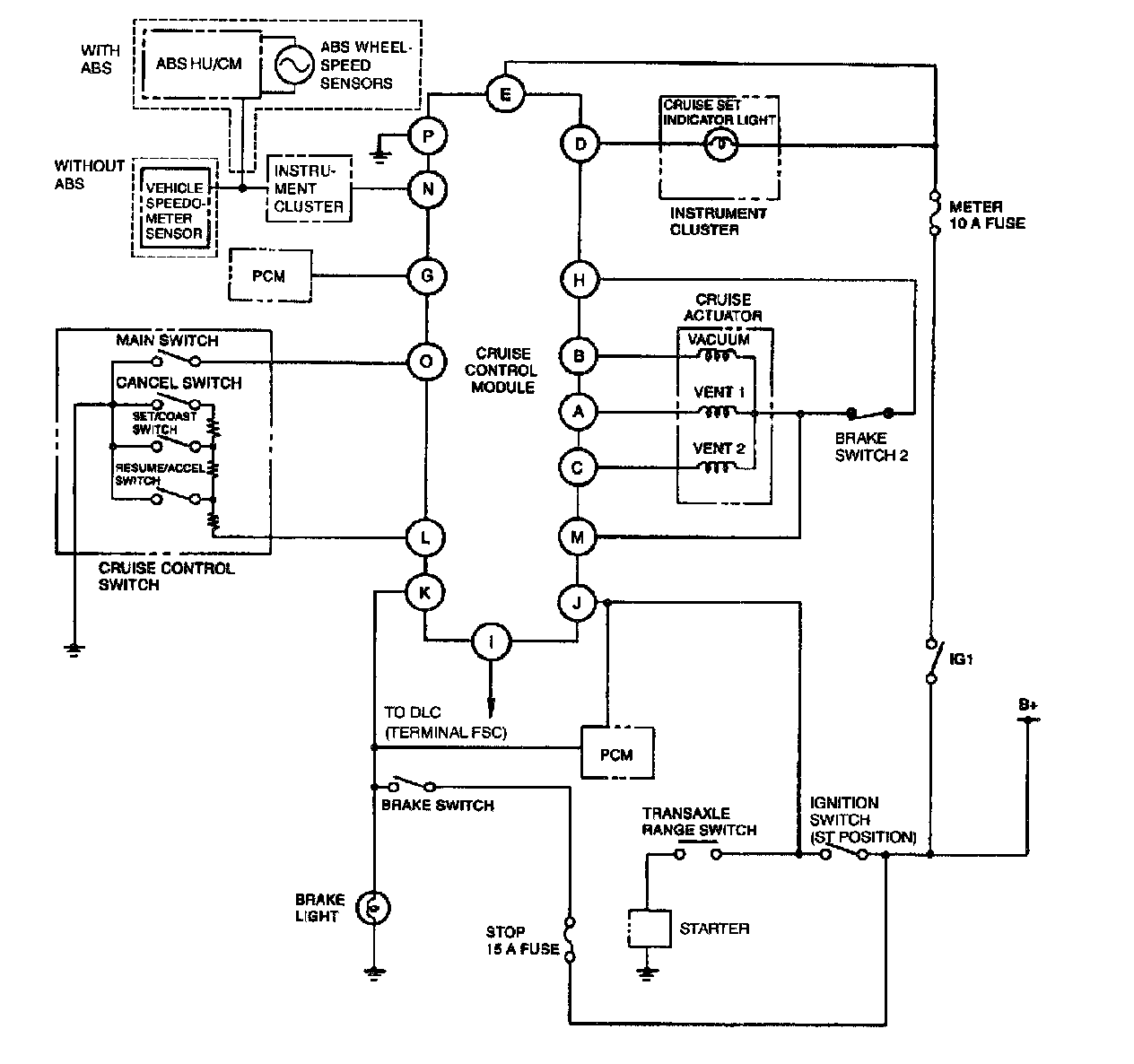

Cruise Control System:
