Front Resistor

1. Remove the glove compartment.
2. Disconnect the front resistor connector.

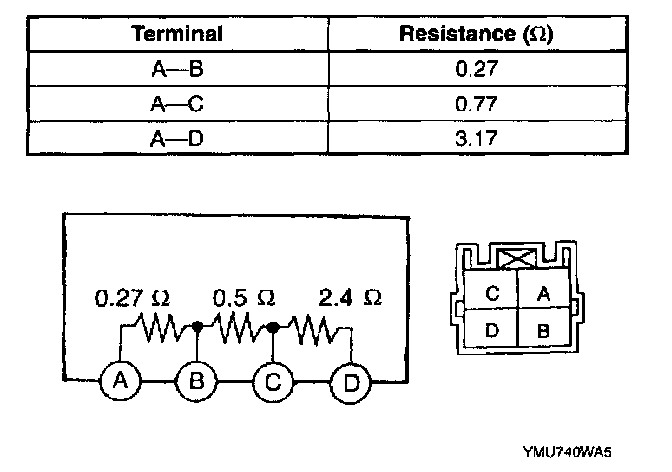

3. Verify that the resistance between the terminals of the front resistor is as shown in the table.
- If not as specified, replace the front resistor.
