Courtesy Lamp: Service and Repair

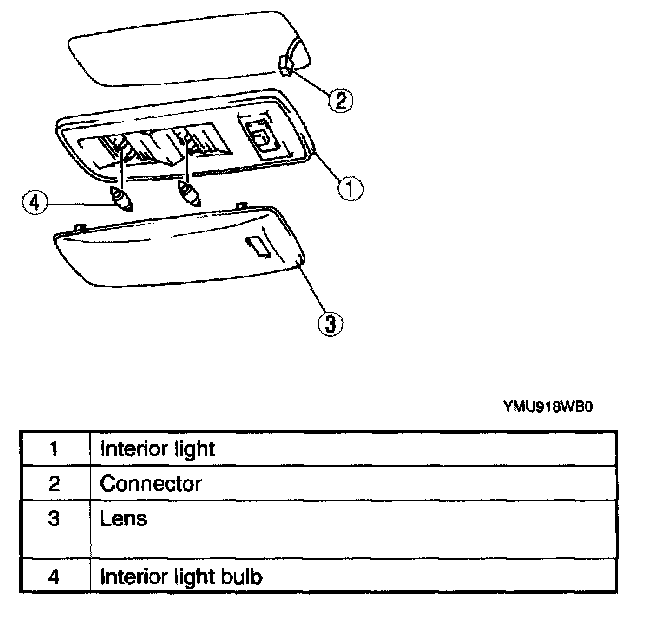

1. Disconnect the negative battery cable.




2. Remove in the order indicated in the table.
3. Install in the reverse order of removal.

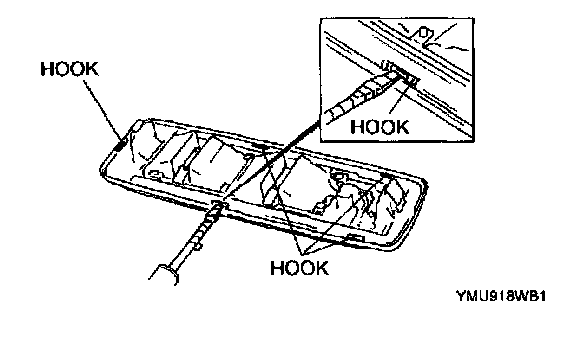

Lens Removal Note
1. Insert a tape-wrapped flathead screwdriver into the service hole.




2. Push the hooks to remove the lens.
