Key Interlock Resistor Inspection

KEY INTERLOCK RESISTOR INSPECTION
Resistance Inspection
1. Disconnect the negative battery cable.
2. Disconnect the key interlock resistor connector.

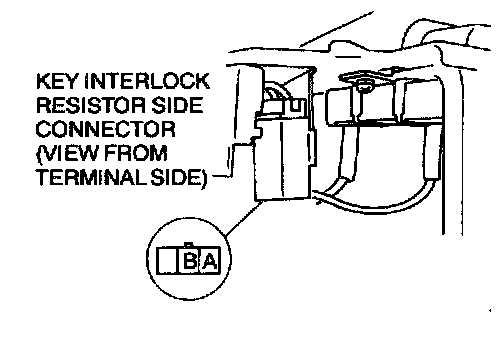

3. Inspect for resistance between terminals A and B.
- If not correct, replace the key interlock resistor.
Resistance
6.6 - 7.35 ohms
4. Connect the key interlock resistor connector.
5. Connect the negative battery cable.
