Shift-Lock Relay Inspection

SHIFT-LOCK RELAY INSPECTION
1. Disconnect the negative battery cable.
2. Disconnect the shift-lock relay connector.

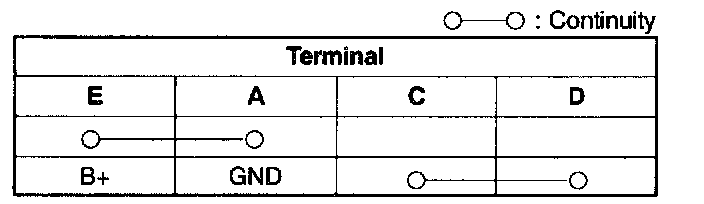

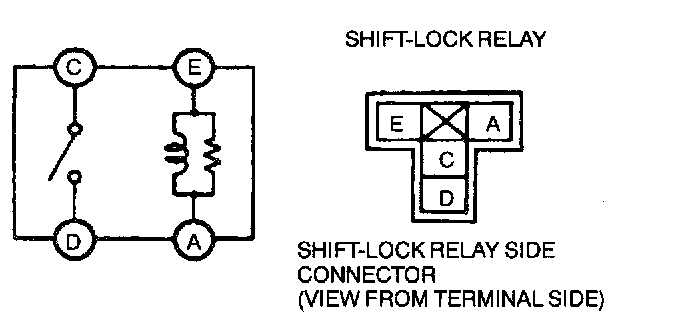

3. Inspect voltage and continuity between the shift-lock relay terminals.
- If not as specified, replace the shift-lock relay.
4. Connect the shift-lock relay connector.
5. Connect the negative battery cable.
