Flex Plate: Service and Repair

DRIVE PLATE REMOVAL/INSTALLATION





1. Remove in the order indicated in the table.
2. Install in the reverse order of removal.

Drive Plate Mounting Bolts Removal Note

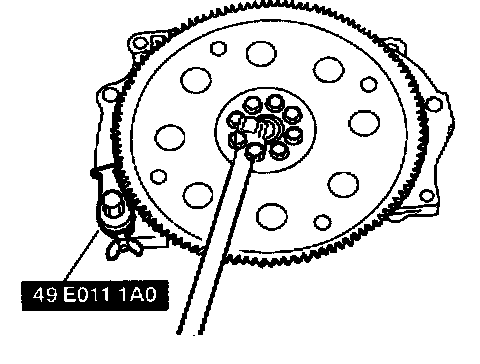

1. Set the SST or equivalent against the drive plate.





2. Remove the bolts and the drive plate.

Drive Plate Mounting Bolts Installation Note
1. Set the SST or equivalent against the drive plate.





2. Tighten the drive plate mounting bolts in two or three steps in the order shown.
Tightening torque
73 - 87 Nm (7.4 - 8.9 kgf.m, 54 - 64 ft. lbs.)
