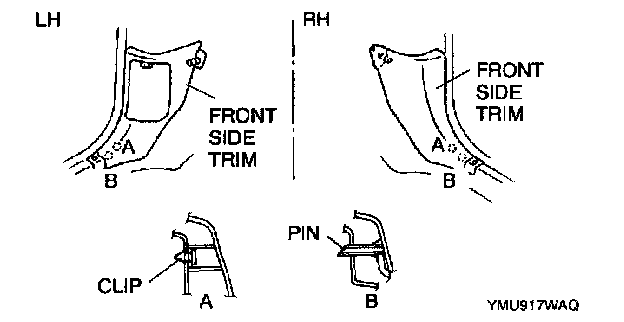

Front Side Trim

1. Remove the front scuff plate.
2. Turn the seaming welt over.

3. Pull the front side trim toward you, then disengage clip A and pin B from the body, and remove the front side trim.
4. Install in the reverse order of removal.
