Liftgate Lock and Opener
1.
Disconnect the negative battery cable.
2.
Remove the liftgate lower trim.
3.
To remove the liftgate outer handle, remove the rear finisher.
4.

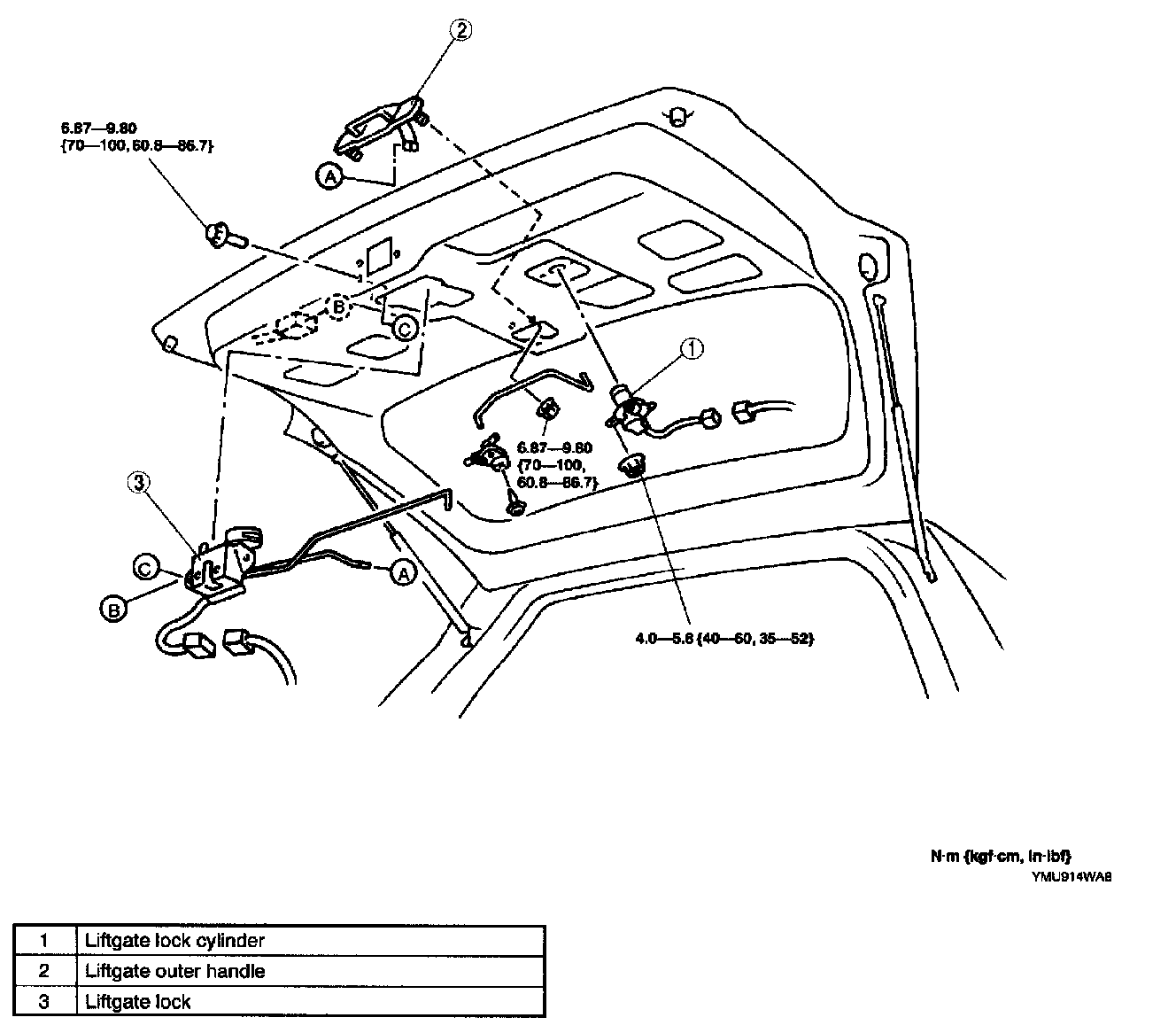

Remove in the order indicated in the table.
5.
Install in the reverse order of removal.
