Power Mirror Switch: Service and Repair

1. Disconnect the negative battery cable.
2. Remove the meter hood.

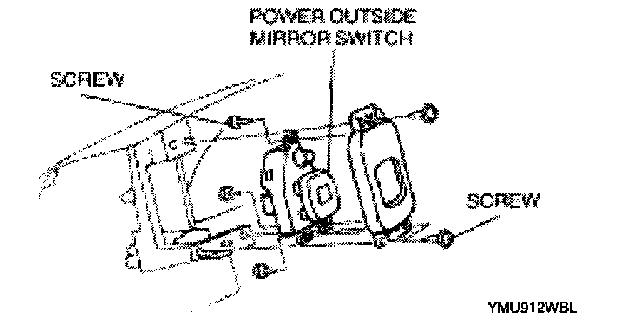

3. Remove the screws, and remove the power outside mirror switch.




4. Disconnect the connector.
5. Install in the reverse order of removal.
