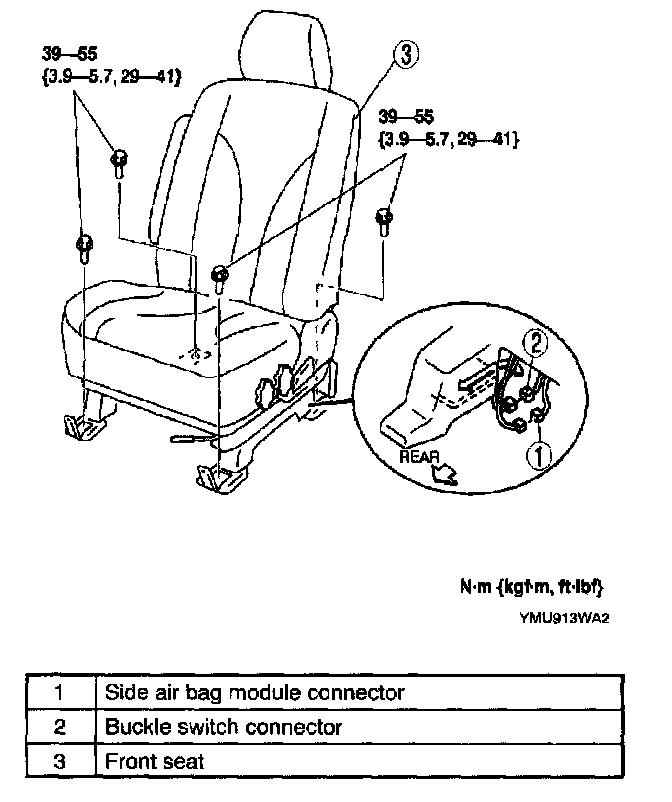

Front Seat
WARNING: Handling the front seal (side air bag) improperly can accidentally deploy the side air bag, which may seriously injure you. Read AIR BAG SYSTEM SERVICE WARNINGS before handling the front seat. 1.
Turn the ignition switch to the LOCK position.
2.
Disconnect the negative battery cable and wait for more than
1 minute.
3.
Remove in the order indicated in the table.
4.
Install in the reverse order of removal.
