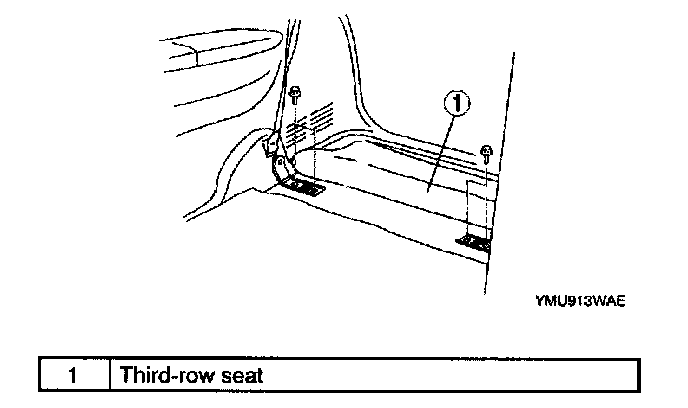

Third-Row Seat
Seat 1.
Remove as indicated in the table.
2.
Install in the reverse order of removal.
Hinge 1.
Remove the third-row seat.
2.
Remove the rear side trim.
3.
Remove the third-row seat belt lower anchor.
4.
Remove in the order indicated in the table.
5.
Install in the reverse order of removal.

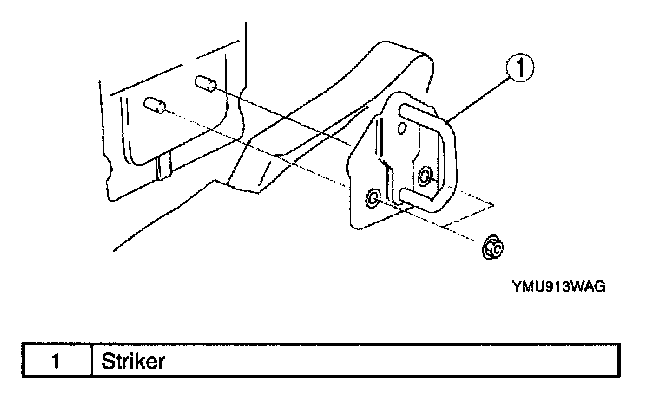

Striker 1.
Remove the rear side trim.
2.
Remove as indicated in the table.
3.
Install in the reverse order of removal.
