Extractor Chamber

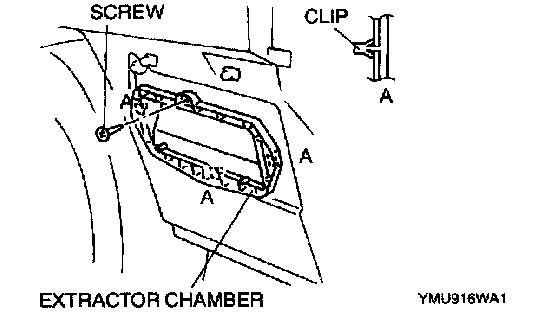

Extractor Chamber
1.
Remove the rear
bumper
.
2.
Remove the
jack
.
3.
Remove the screw.
4.
Squeeze the clips with your fingers and remove the extractor chamber from the vehicle side.
5.
Install in the reverse order of removal.
