Brake Pedal Assy: Service and Repair

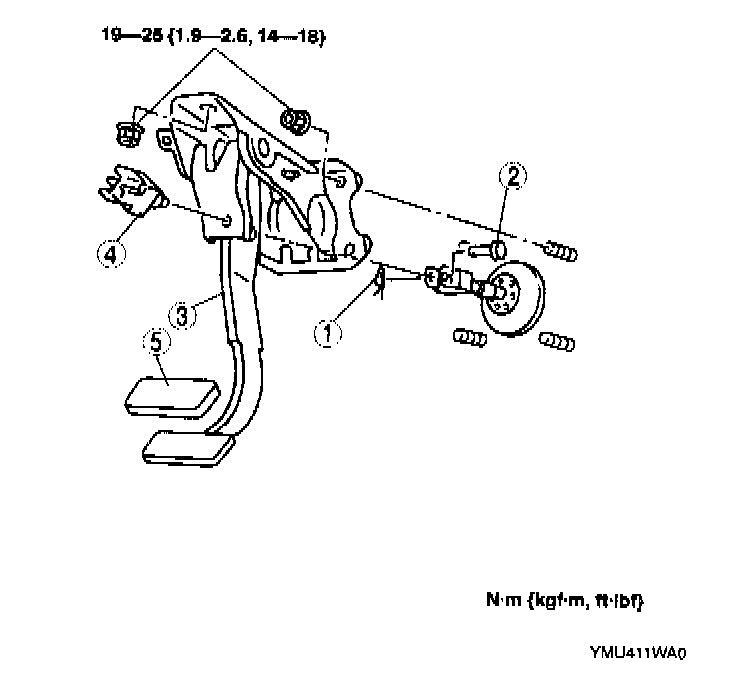

BRAKE PEDAL REMOVAL/INSTALLATION
1. Disconnect the brake switch connector.

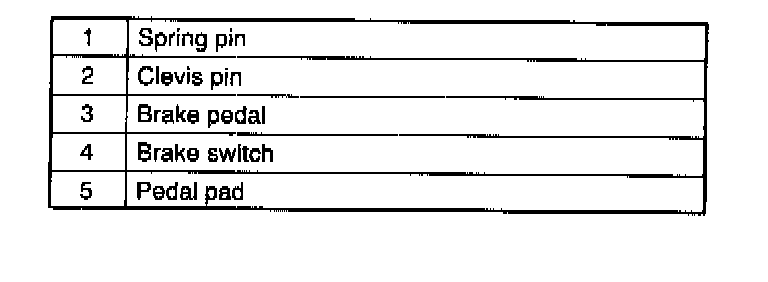

2. Remove in the order indicated in the table.
3. Install in the reverse order of removal.
