Cruise Control Module: Testing and Inspection

1. Remove the cruise control module without disconnecting the connector.

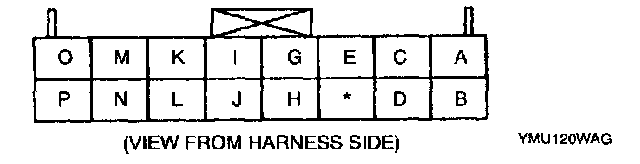

Terminal Voltage Table (Reference) - Connector View:

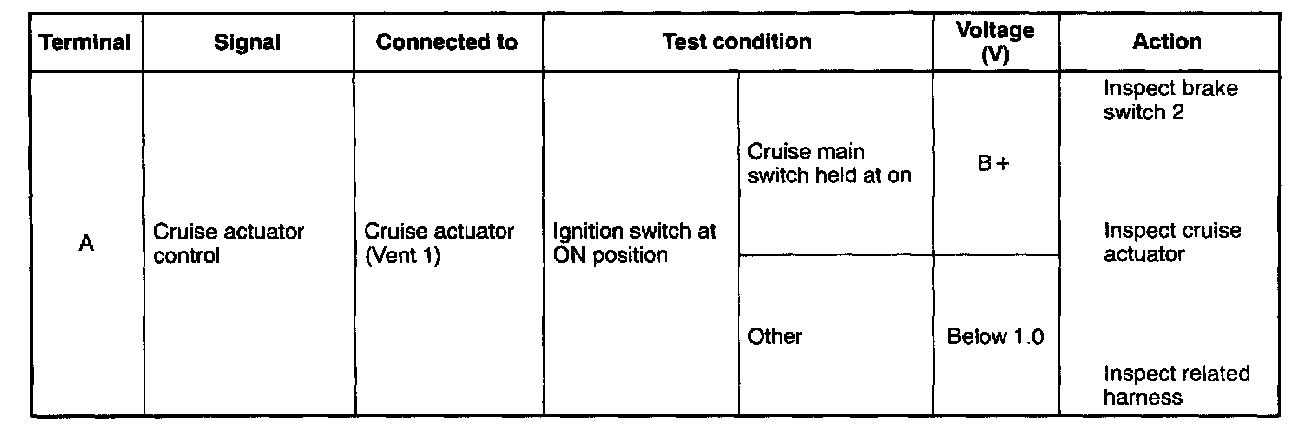

Terminal Voltage Table (Reference) - Pinout A:

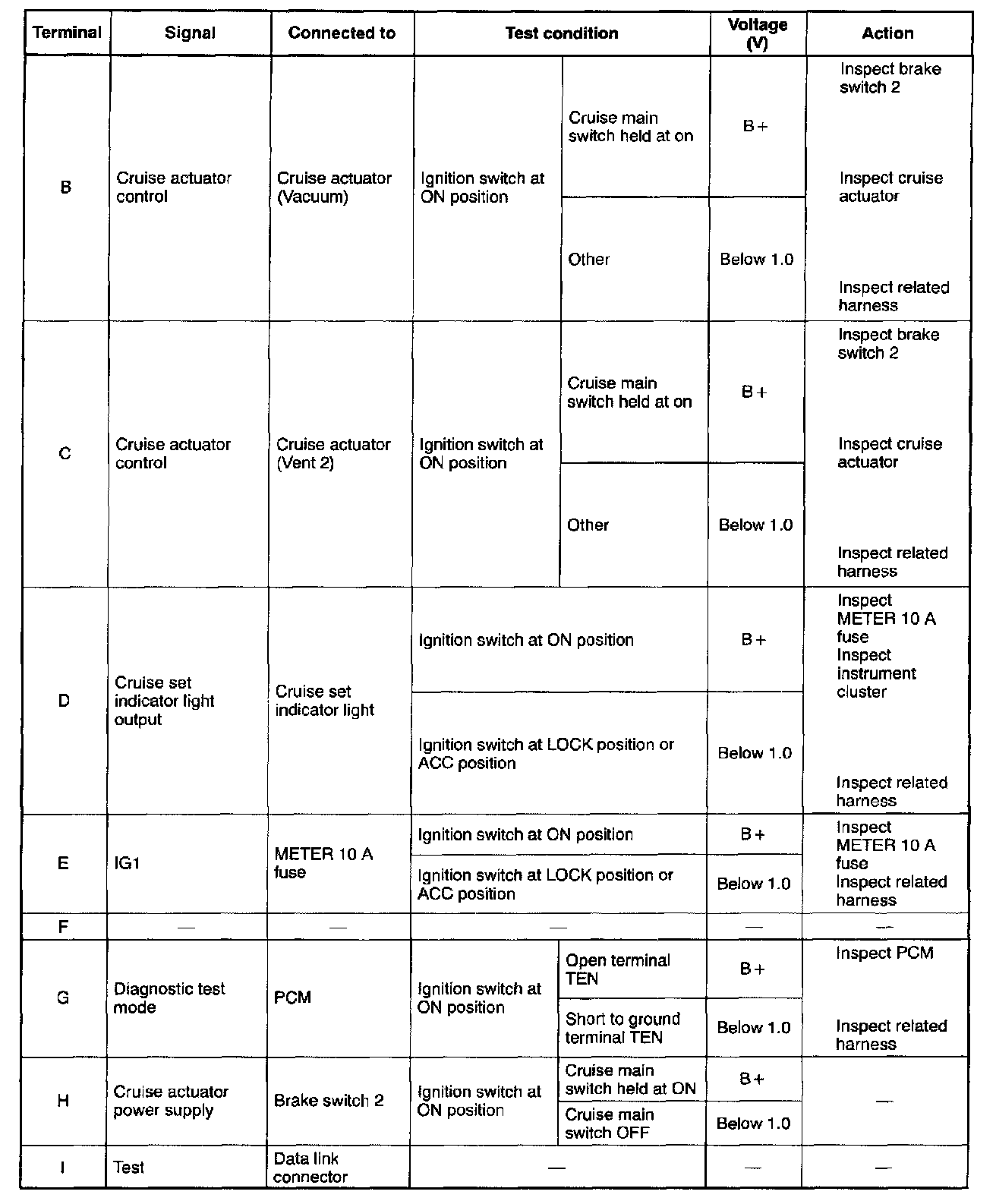

Terminal Voltage Table (Reference) - Pinouts (B - I):

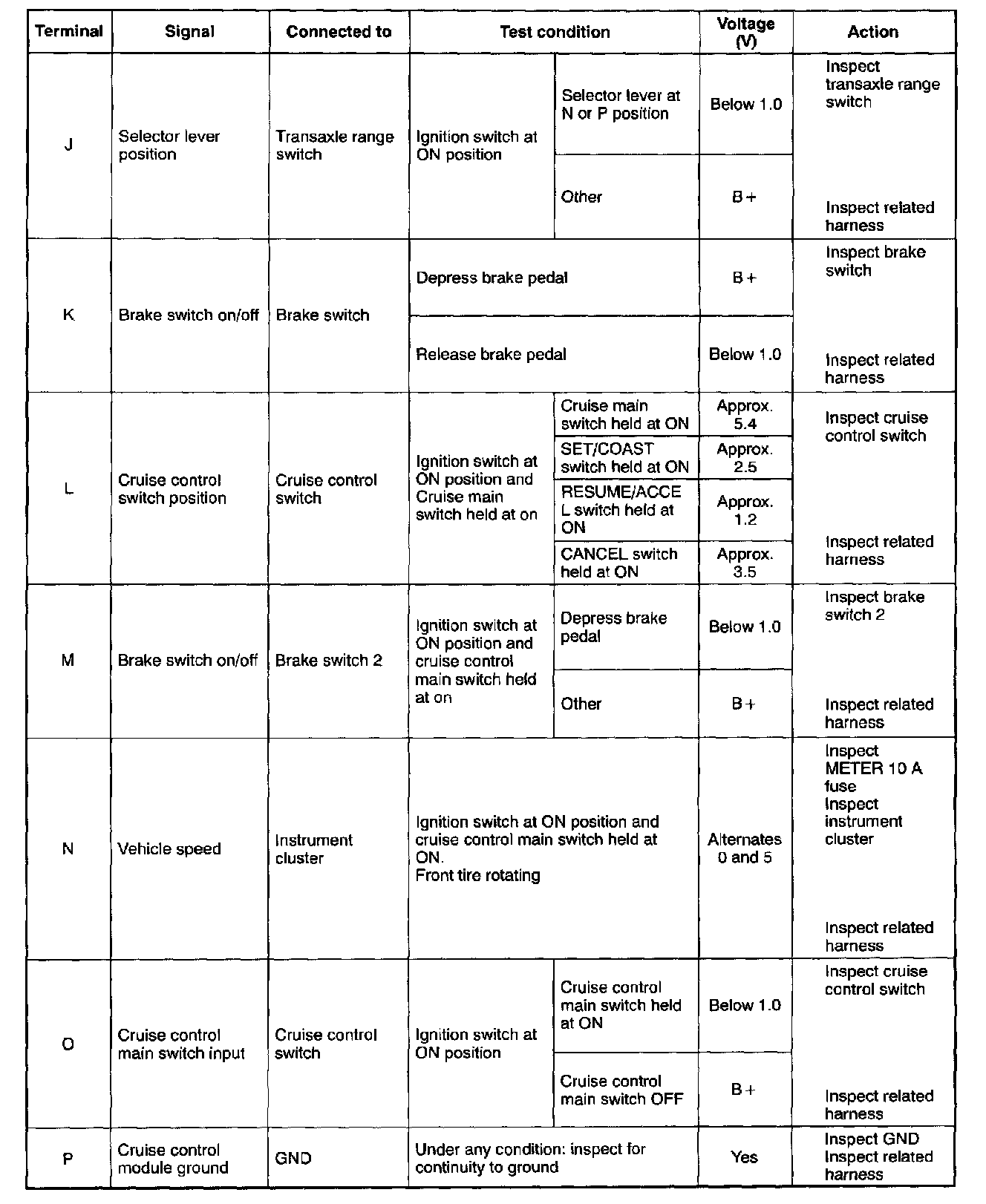

Terminal Voltage Table (Reference) - Pinouts (J - P):

2. Measure the voltage at the cruise control module terminals as indicated.
3. Disconnect the cruise control module connector before inspecting for continuity at terminal P.
- If not as specified, inspect the parts listed under "Action."
- If the parts and wiring harnesses are okay but the system still does not work properly, replace the cruise control module.
