Air Register: Service and Repair

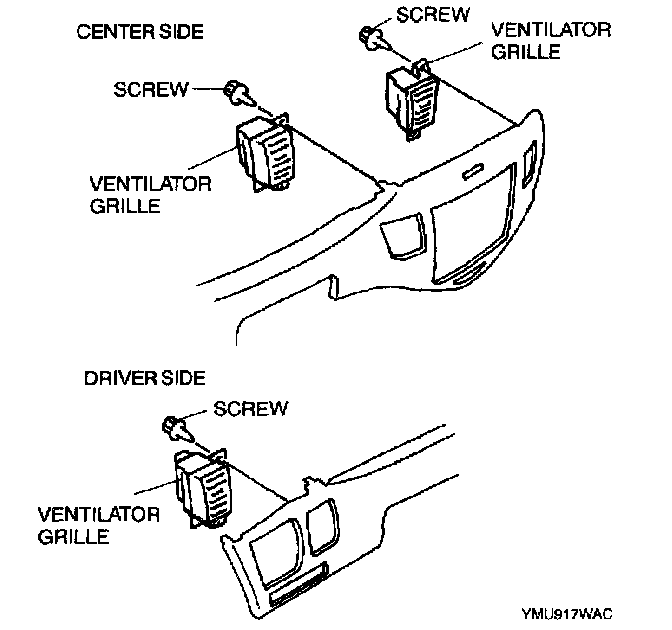

Driver's and Center Side
1. Remove the meter hood.




2. Remove the screws from behind the center panel, and remove the ventilator grille.
3. Install in the reverse order of removal.

Passenger's side
1. Remove the dashboard.
2. Remove the screws from behind the dashboard, then remove the ventilator grille.
3. Install in the reverse order of removal.
