Rear Resistor

1. Disconnect the negative battery cable.
2. Remove the rear side trim (RH).
3. Disconnect the rear resistor connector.

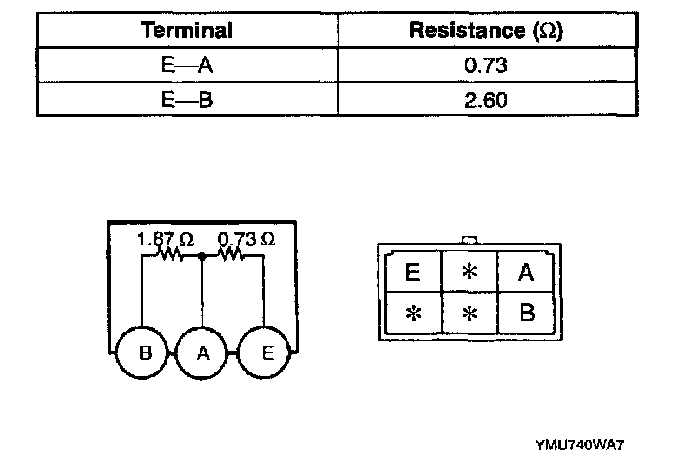

4. Inspect the resistance between the rear resistor terminals using an ohmmeter.
- If not as specified, replace the rear resistor.
