Rear Main Fan Switch
Rear Main Fan Switch
1.
Remove the rear main fan switch.
2.

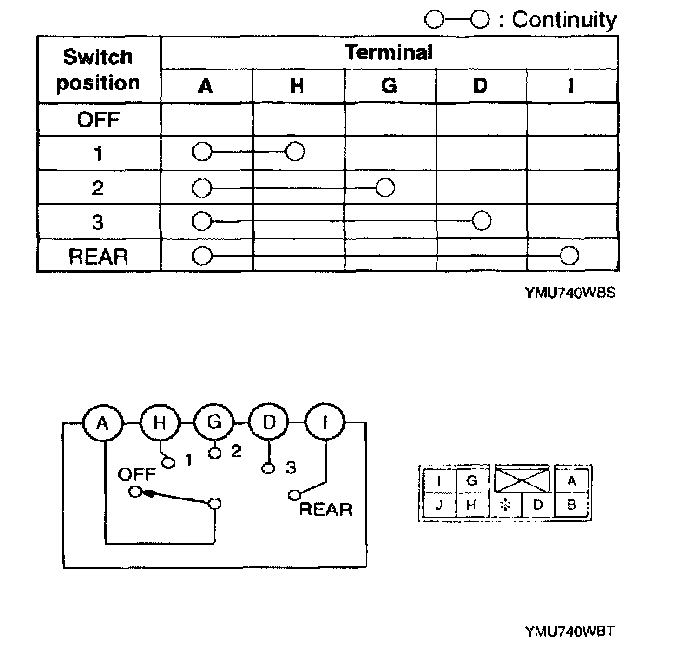

Inspect for continuity between the rear main fan switch terminals using an ohmmeter.
-
If not as specified, replace the rear main fan switch.
