Rear Climate Control Unit
1.
Remove the rear cup holder (RH).
2.

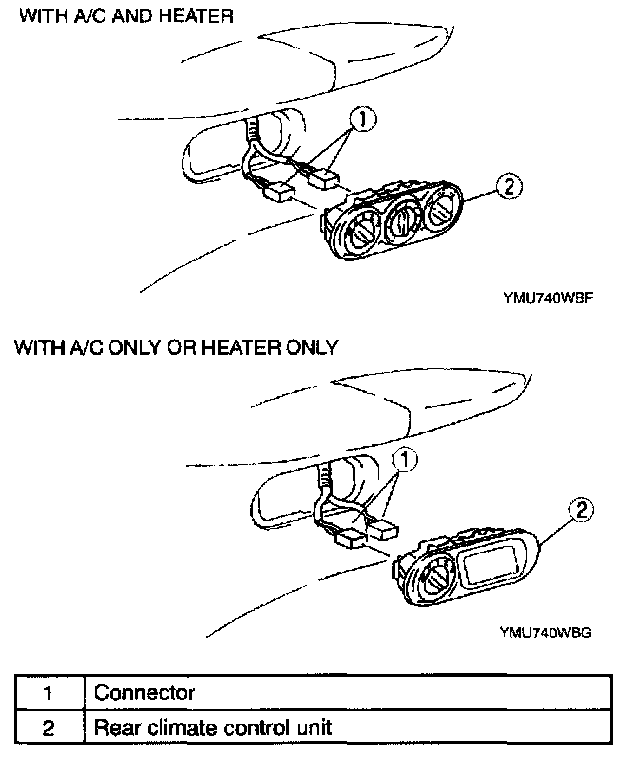

Remove in the order indicated in the table.
3.
Install in the reverse order of removal.
