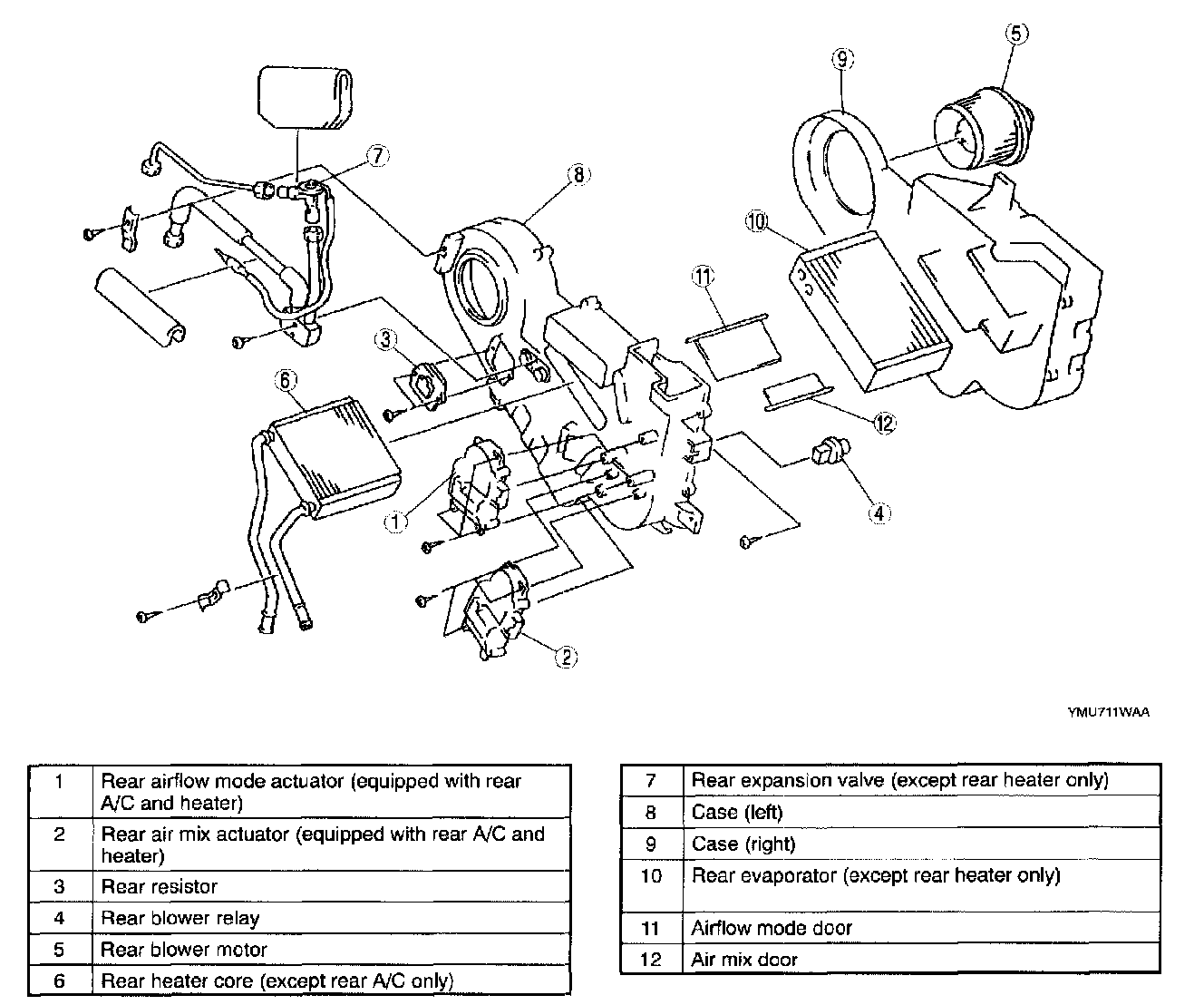

Rear A/C Unit

1. Disassemble in the order indicated in the table.
2. Assemble in the reverse order of disassembly.

Rear Evaporator Assembly Note
1. When installing a new rear evaporator, add ND-OIL8 compressor oil from the inlet.

Supplemental amount
40 ml {40 cc, 1.4 fl oz}
