Front A/C Unit

1. Disconnect the negative battery cable.
2. Drain the engine coolant.
3. Evacuate the refrigerant from the system.

CAUTION: If moisture or foreign material enters the refrigeration cycle, cooling ability will be lowered and abnormal noise will occur. Always immediately plug open fittings after removing any refrigeration cycle parts to keep moisture or foreign material out of the cycle.

4. Remove the dashboard.

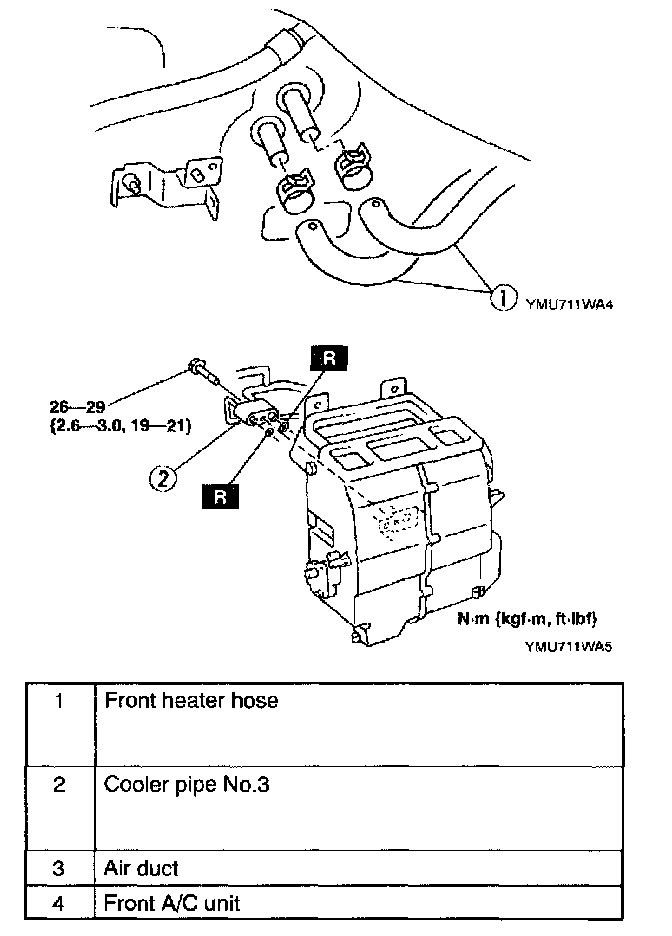

Engine Room:

Passenger Room:

5. Remove in the order indicated in the table.
6. Install in the reverse order of removal.
