Manifold Gauge Set Installation

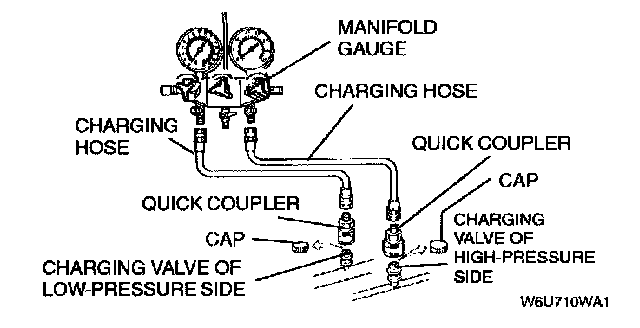

Manifold Gauge Set Installation 1.
Fully close the valves of the manifold gauge.
2.
Connect the charging hoses to the high- and low-pressure side joints of the manifold gauge.
3.
Connect the quick couplers to the ends of the charging hoses.
4.
Connect the quick couplers to the charging valves.
