Interior Lighting Relay: Service and Repair
1.
Remove the negative battery cable.
2.

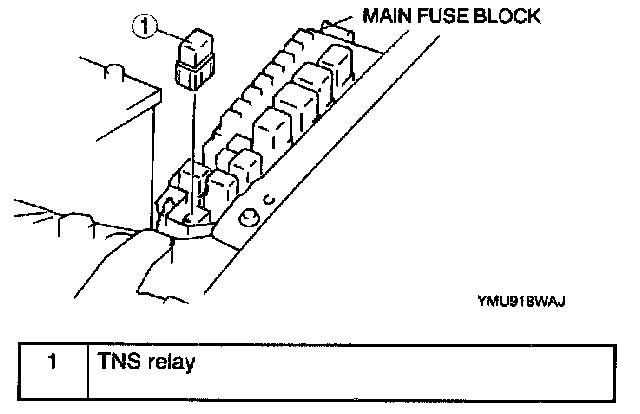

Remove the main fuse block cover.
3.
Remove as indicated in the table.
4.
Install in the reverse order of removal.
TNS Relay Removal Note 1.

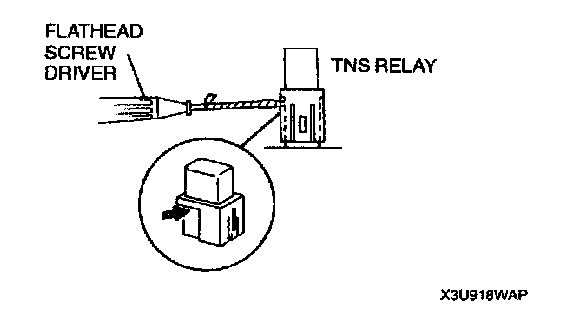

Insert a tape-wrapped flathead screwdriver into the indented portion of TNS relay.
2.

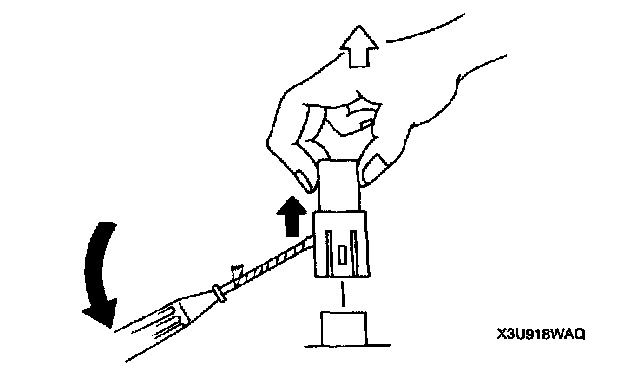

Pull the TNS relay out while pressing the flathead screwdriver downward.
