License Plate Lamp: Service and Repair

1. Disconnect the negative battery cable.

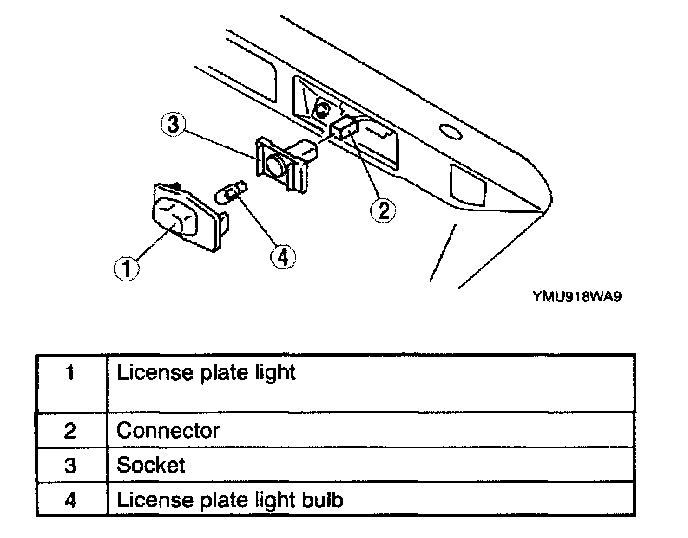

2. Remove in the order indicated in the table.
3. Install in the reverse order of removal.




License Plate Light Removal Note

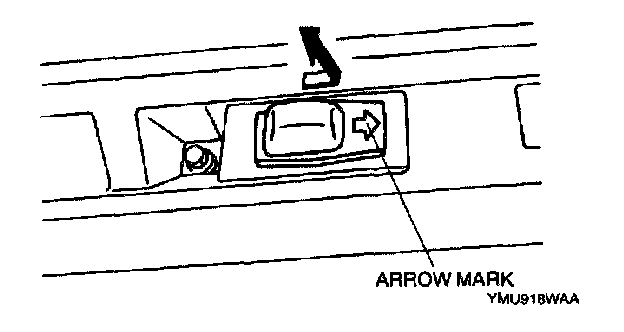

1. Slide the license plate light to the arrow mark and remove it.
