Vanity Lamp: Service and Repair

1. Disconnect the negative battery cable.
2. Remove the sunvisor.

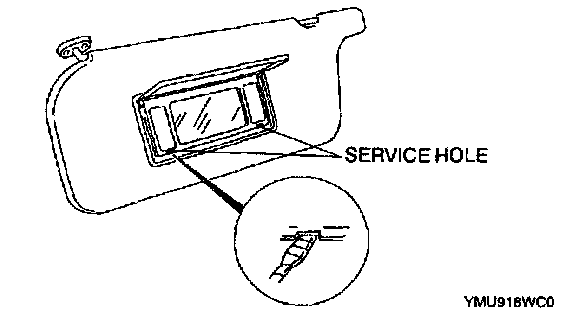

3. Insert a tape-wrapped flathead screwdriver into the service hole.

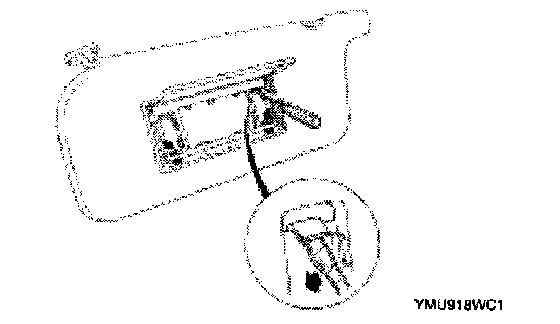

4. Twist the flathead screwdriver to remove the lens.




5. Unhook the hooks using a tape-wrapped flathead screwdriver
6. Remove the mirror unit.

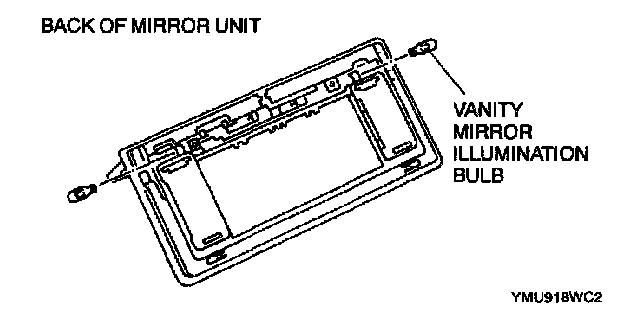

Back Of Mirror Unit:




7. Remove the vanity mirror illumination bulbs.
8. Install in the reverse order of removal.
