Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mazda
>>
2000
>>
MPV ES V6-2.5L DOHC
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse Block
>>
Locations
>>
Connector Locations
>>

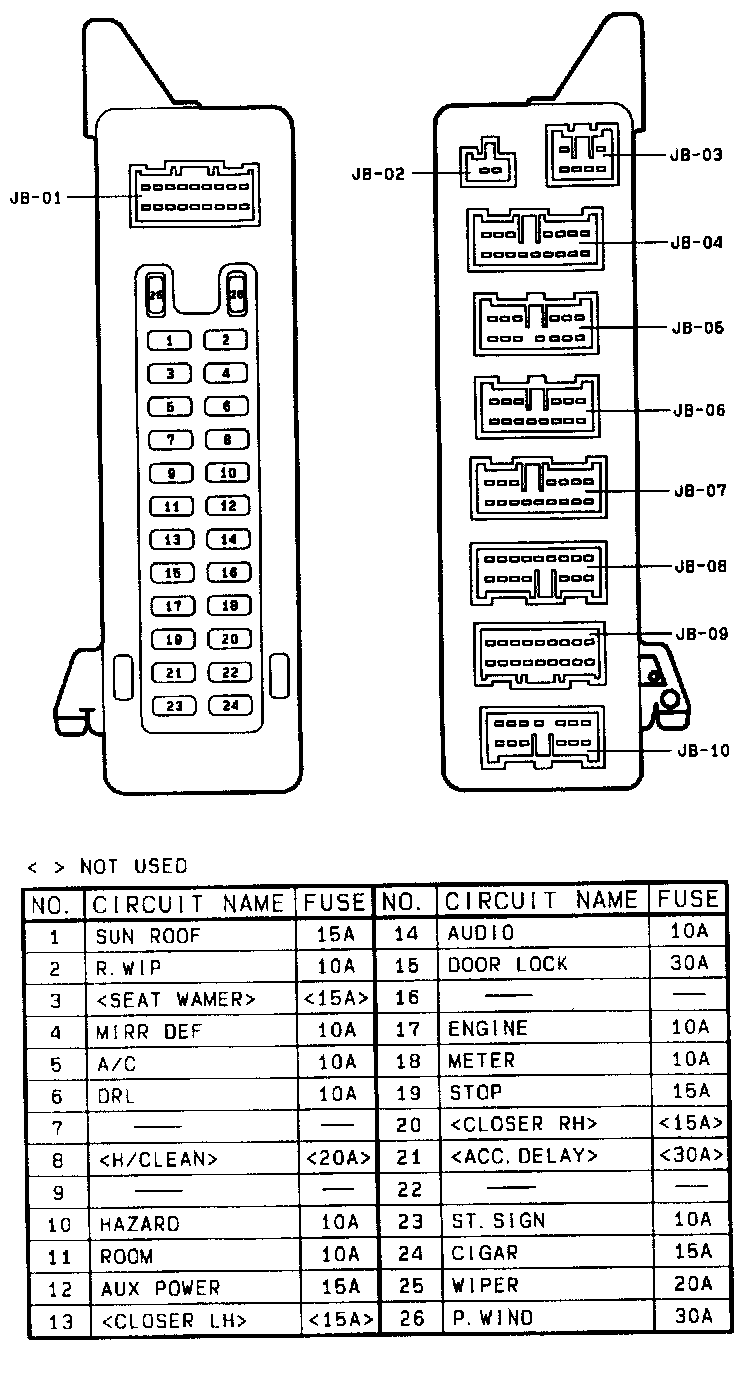

Fuse Location/Application Chart
Fuse Location/Application Chart
