Data Monitor Procedure

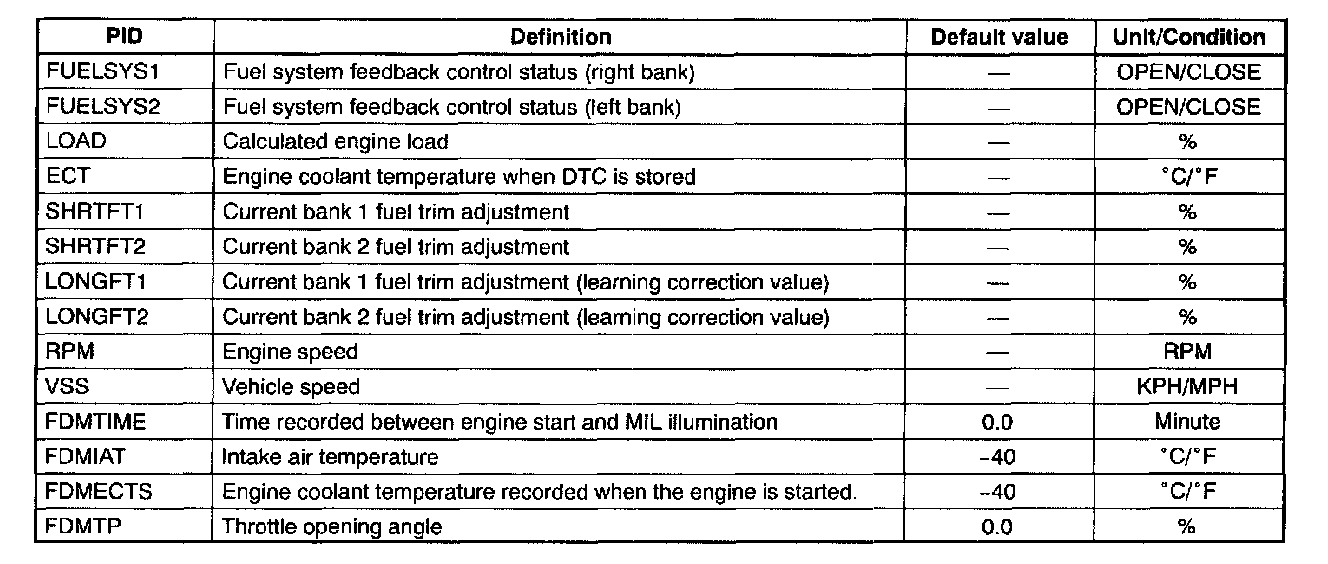

Freeze frame data when DTC is set (MIL illuminates)




- Retrieve the following FFD from GENERIC OBD II FUNCTIONS, excluding FDMTIME, FDMIAT, FDMECTS and FDMTP. Retrieve the FFD for FDMTIME, FDMIAT FDMECTS and FDMTP from PID/DATA MONITOR & RECORD in DIAGNOSTIC DATA LINK.

NOTE: FFD is a snapshot of the conditions that are present when DTC or PENDING CODE is stored. Once FFD is stored, this data will remain in PCM memory even if another emission related DTC or PENDING CODE is stored additionally, except for Misfire or Fuel System related DTC or PENDING CODE. Once Misfire or Fuel System related DTC or PENDING CODE is stored, it will overwrite any previous data and the FFD will not be further overwritten. When DTC associated with the FFD is erased or PCM is reset new FFD can be stored.

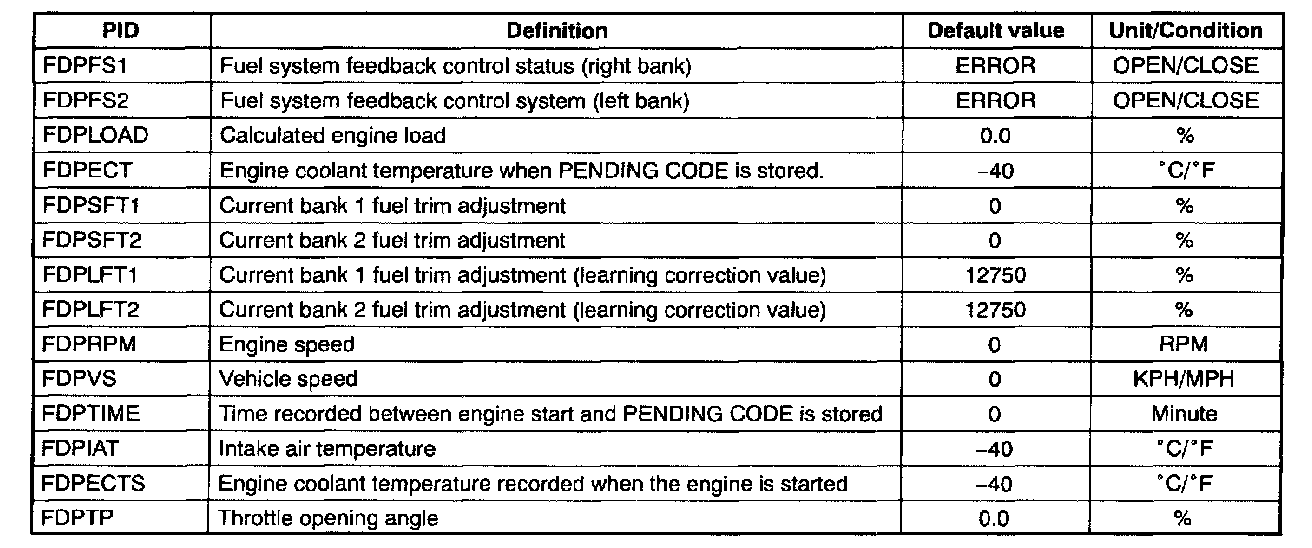

Freeze frame data when pending code is set




- Retrieve the following FFD from PID/DATA MONITOR & RECORD in DIAGNOSTIC DATA LINK.

NOTE: The data will remain in the memory even if another emission-related DTC is stored, including the Misfire and Fuel System Monitor DTCs.
