Operation CHARM: Car repair manuals for everyone.
Home >> Mazda >> 2000 >> MPV ES V6-2.5L DOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Symptom Charts >> 30 Spark Plug Condition

30 Spark Plug Condition

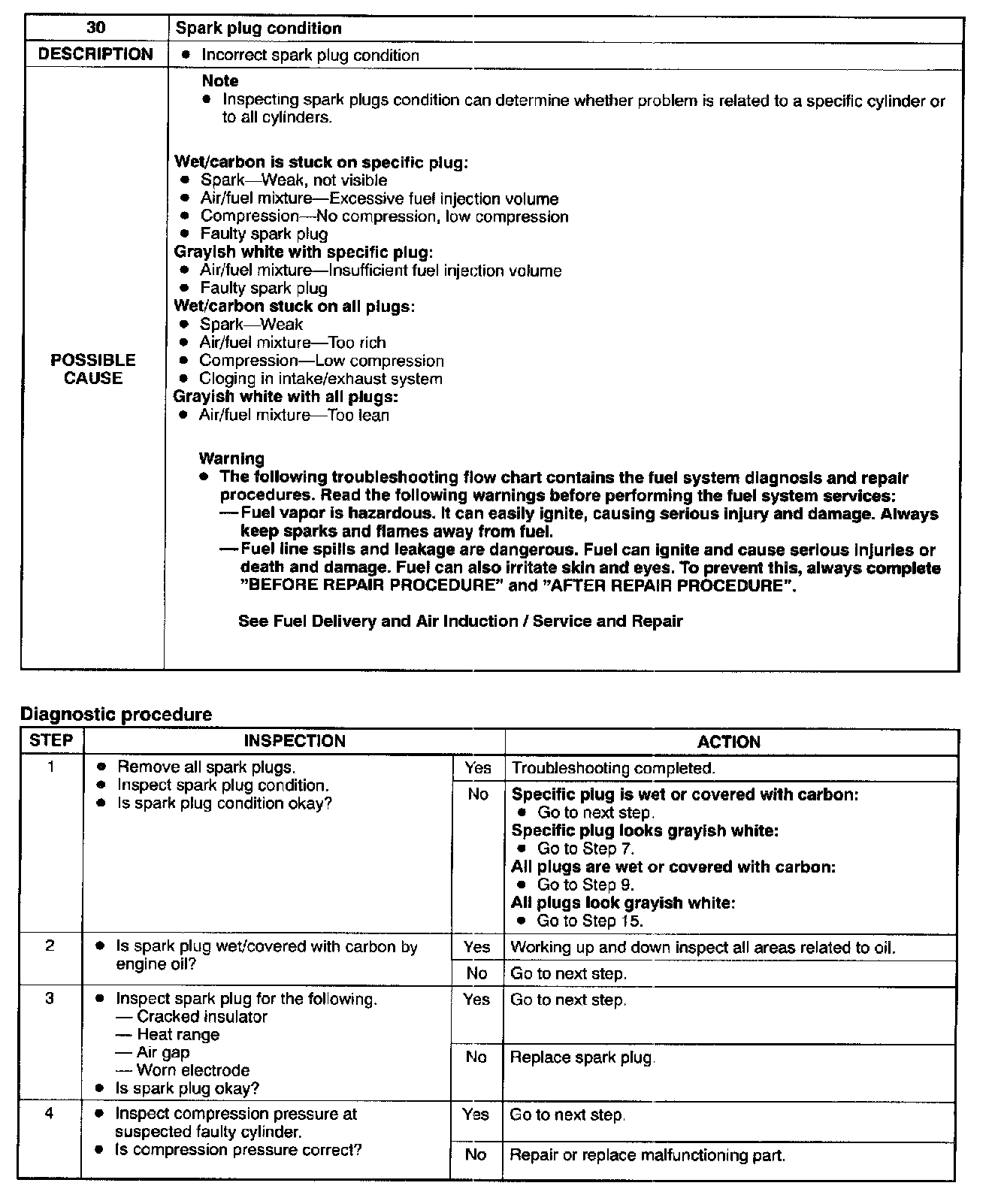

Steps 1 - 4:

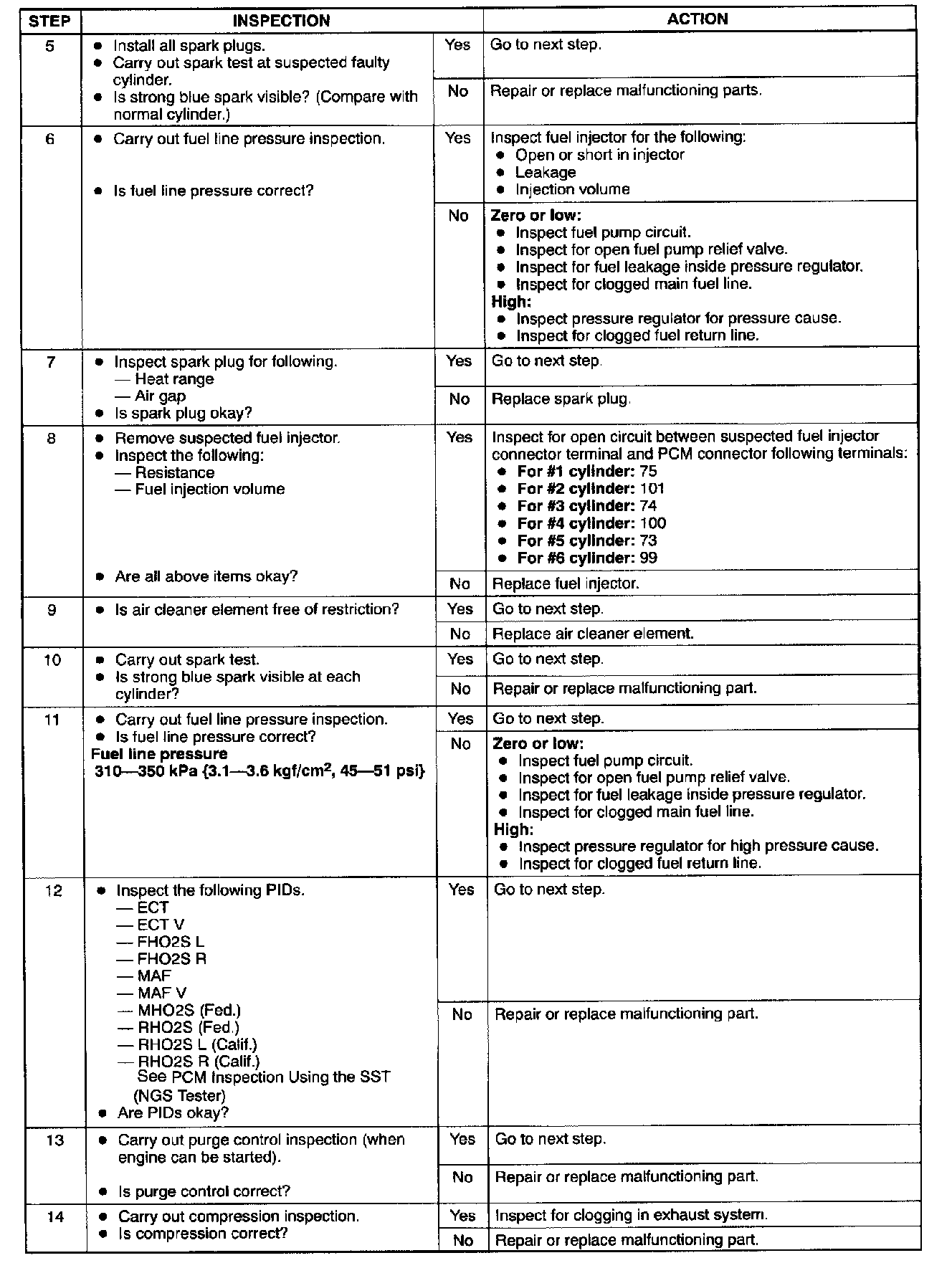

Steps 5 - 14:

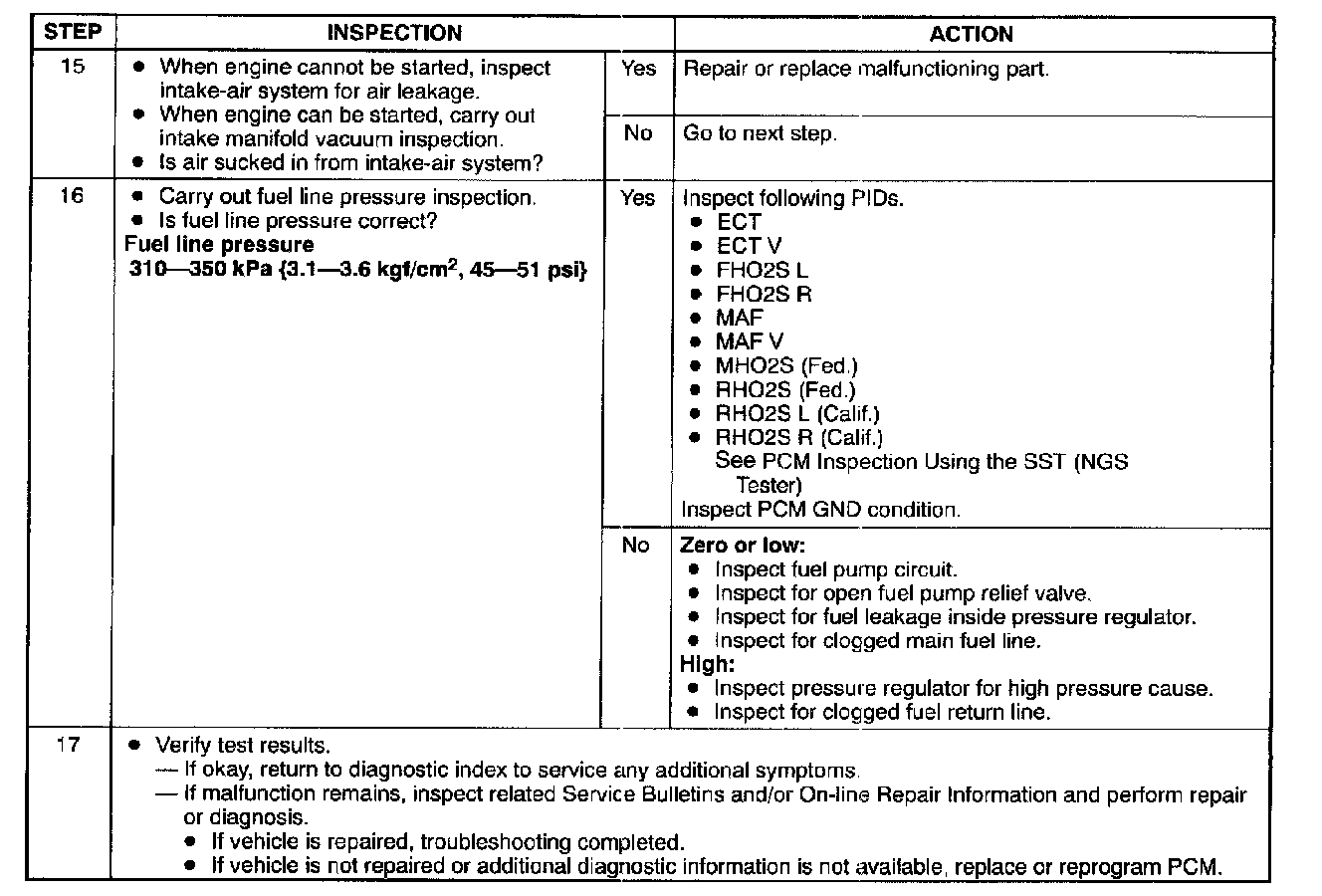

Steps 15 - 17:
