Control System Wiring Diagram Part 1 With Immobilizer System
Control System Wiring Diagram Part 1 With Immobilizer System

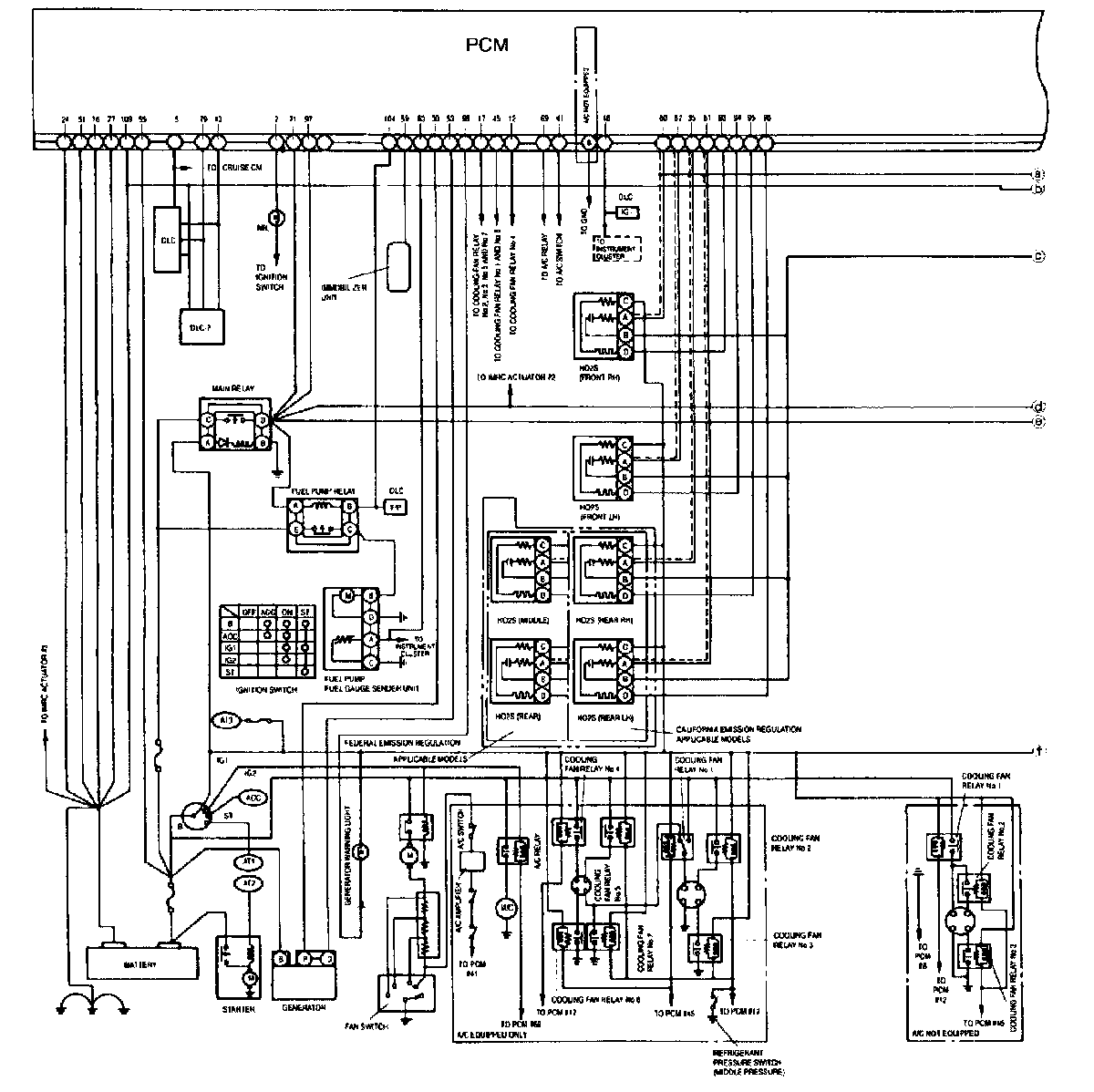

Diagram - With Immobilizer System (Part 1 Of 2):
